ERA

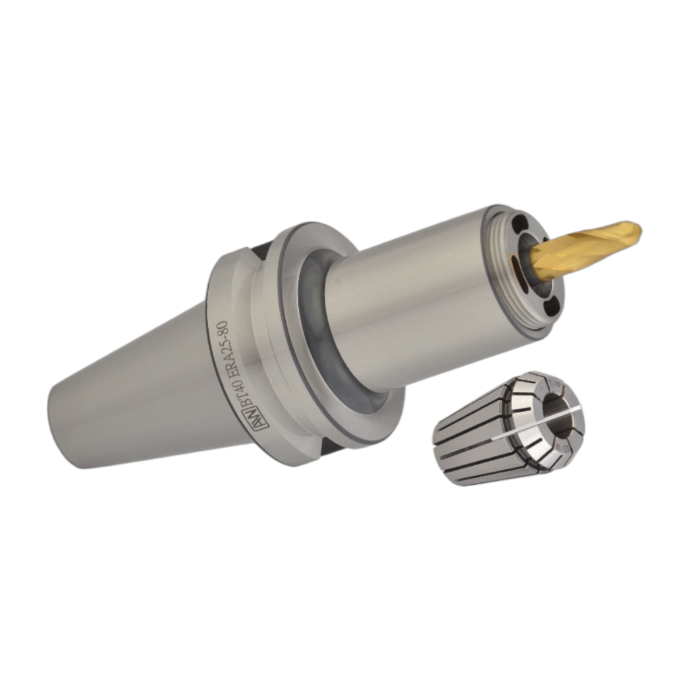

HIGH SPEED COLLET CHUCK
https://www.annwaytools.com/web/image/product.template/17/image_1920?unique=7994348

Applications: For Drills, Reamers, Tap, Rough milling, and Carbide Finishing End mills.

Features

  • ERA series features a built-in nut design that effectively reduces cutting vibration, enhancing machining quality and stability. Available in ER16/ER20/ER25/ER32 collet sizes, offering flexibility to meet different tooling requirements. ERA system is balanced at 30,000 r.p.m G2.5, ensuring stable performance at high speed cutting.

BT

HSK-A

SK (DIN69871A)

CAT

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
​Er COLLET ​ERA NUTera Wrench

​Er COLLET

4 types to choose:

ER Collet-Standard Type: ER08~ ER20 suggested clamping range should be 0.5mm, ER25~ER32 suggested clamping range should be 1mm.


ER Collet-CL- Coolant Type: ER16-CL, ER20-CL, ER25-CL, ER32-CL.


ER Collet-JCL- Jet Coolant Type: ER16-JCL, ER20-JCL, ER25-JCL, and ER32-JCL.


ER Collet-E- For End Mill: ER16E, ER20E, ER25E, ER32E.


​ERA NUT

Standard Nut: ERA11-NUT, ERA16-NUT, ERA20-NUT, ERA25-NUT, ERA32-NUT.

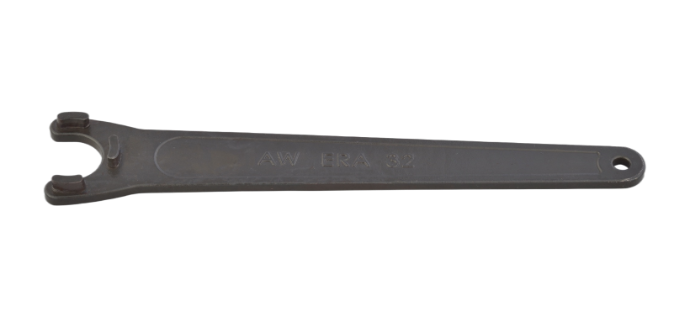

era Wrench

ERA wrench :WERA11, WERA16, WERA20, WERA25, WERA32.
