What Is a CNC Milling Tool Holder and How Do They Work?

CNC milling tool holders are essential components in the machining process. They serve as the interface between the machine spindle and the cutting tool, securely gripping the tool and facilitating its rotation and movement during milling operations. By providing stability and precision, these tool holders ensure optimal cutting performance and accuracy.

Other than simply holding the cutting tool, CNC tool holders play a critical role in reducing vibrations, maintaining alignment, and supporting high-speed operations. Their design directly affects the quality of the machining process, influencing factors such as surface finish, tool life, and overall productivity.

Selecting the right CNC milling tool holder depends on factors like spindle type, machining speed, tool type, and required tolerances. A well-matched tool holder enhances performance and prolongs the life of the tool and the machine spindle.

Tool Holders Typically Consist of Three Parts: the Taper, the Flange, and the Collet Pocket

The taper, flange, and collet pocket are the three main components of a CNC milling machine tool holder. The taper ensures a precise and tight fit between the holder and the milling machine's spindle, minimizing vibrations and enhancing machining accuracy. The flange provides additional stability and rigidity, preventing any unwanted movement during the cutting process. The collet pocket securely holds the cutting tool, guaranteeing its proper alignment and concentricity.

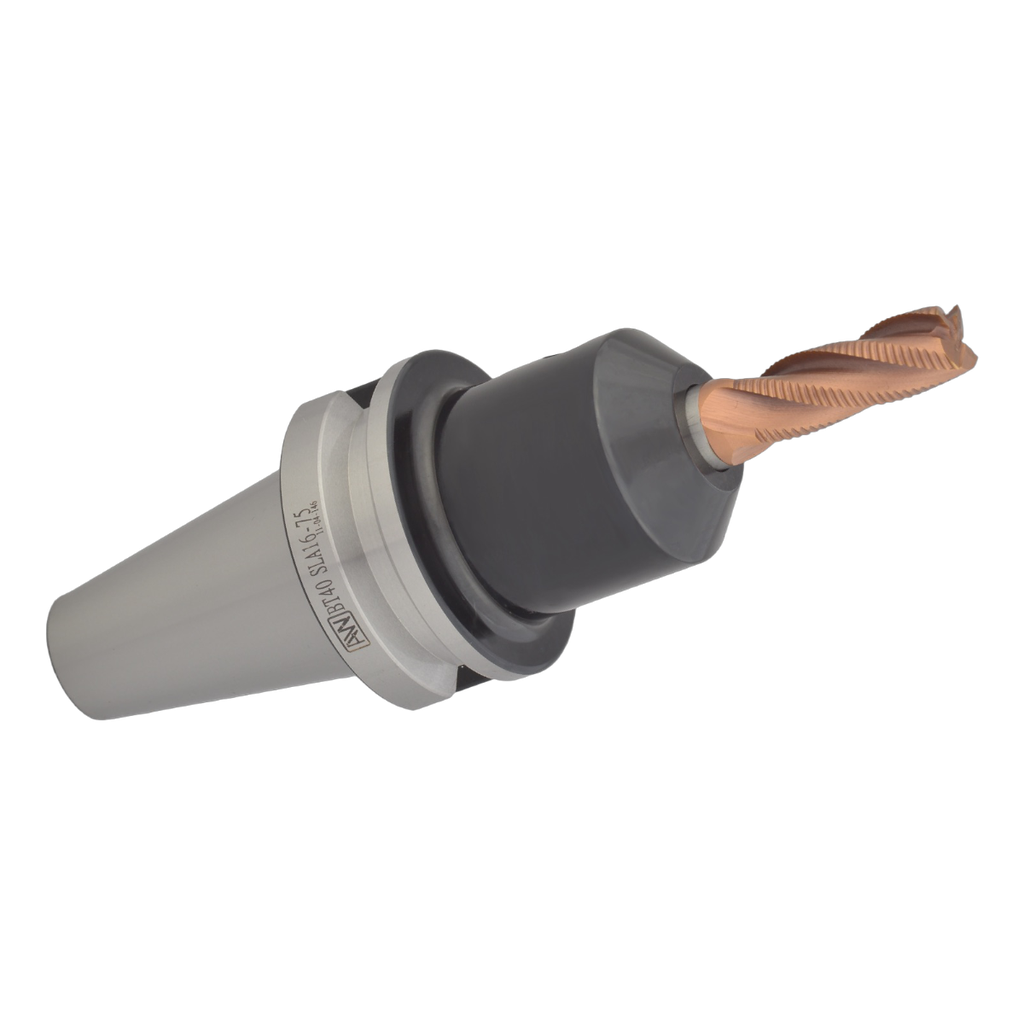

ASR SHRINK FIT HOLDER	SLA END MILL HOLDER	SLC END MILL HOLDER - JET THROUGH COOLANT TYPE	EM END MILL HOLDER - WELDON
APU DRILL CHUCK HOLDER	JTA/B DRILL CHUCK HOLDER	MTA DRILL CHUCK HOLDER	MTB MORSE TAPER HOLDER-B

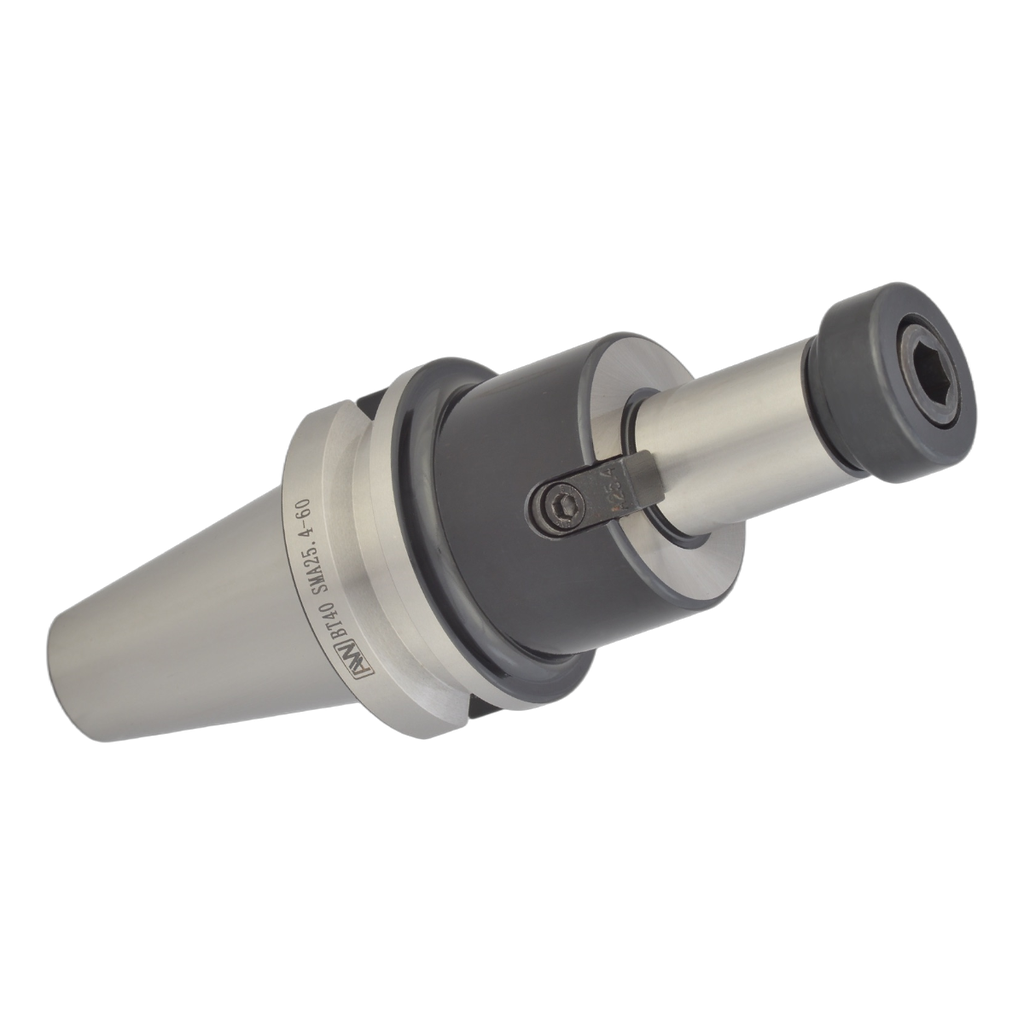

FMA FACE MILL HOLDER - INCH	FMB FACE MILL HOLDER - METRIC	FMH FACE MILL HOLDER – COOLANT TYPE	SMA SHELL MILL HOLDER
SCA SIDE CUTTER HOLDER	HMA HORIZONTAL MILL ARBOR	TSA ADAPTER	AMD SCREW-IN ENDMILL HOLDER
ERO OIL-FEED HOLDER	SLO OIL-FEED HOLDER

Advantages of ANN WAY's CNC Tool Holders

ANN WAY's CNC milling tool holders are made with high-quality materials and precision manufacturing processes. They are designed to provide high accuracy and performance, even in demanding applications. Some of the advantages of ANN WAY's tool holders include:

High Accuracy and Performance:
ANN WAY's CNC tool holders are engineered with utmost precision, ensuring exceptional accuracy in machining operations. They are manufactured to close tolerances and are tested to ensure that they meet or exceed industry standards. This results in minimal runout and improved concentricity, enabling consistent and reliable performance that delivers superior results.
Good Quality:
ANN WAY's commitment to quality is evident in their CNC milling tool holders, which are manufactured in ISO9001-certified facilities using high-quality materials and precision manufacturing processes. This dedication guarantees the delivery of reliable and durable tool holders that are built to last and to provide years of reliable service.
Innovative Design:
ANN WAY's tool holders are designed with innovative features that improve performance and efficiency. For example, their tool holders with coolant through technology provide efficient cooling of the cutting tool, which helps to extend tool life.

ANN WAY: Holding Your Future!

If you are looking for the best CNC machining tool holders on the market, then ANN WAY is the brand for you. Contact us today to learn more about our products and to place an order.
