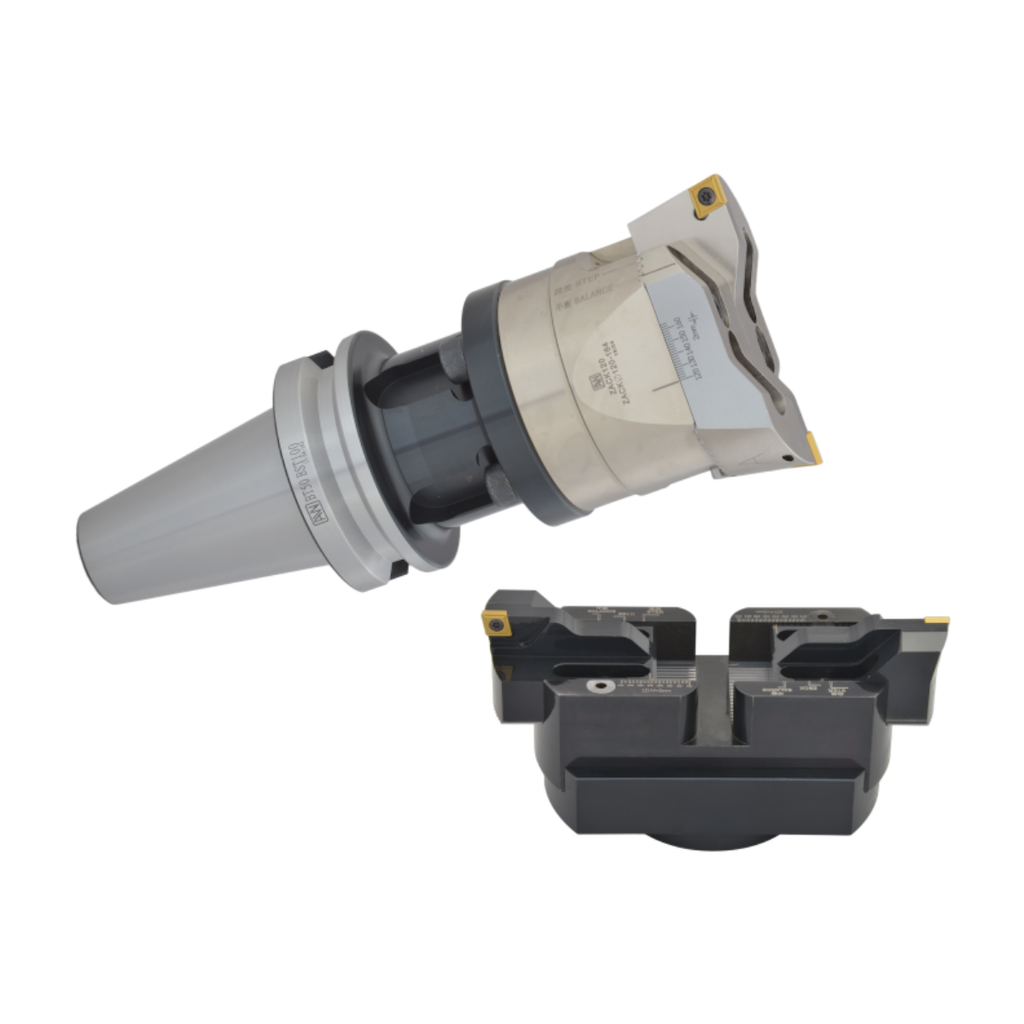

ZACK

LARGE ADJUSTABLE BALANCE CUTTER

Applications: Used for internal rough boring to ensure dimensional stability, and high accuracy.

Features

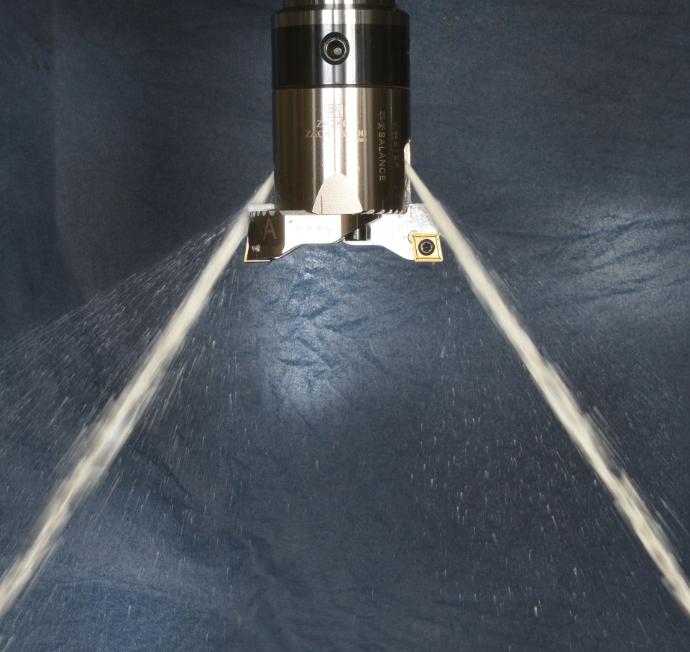

A twin-insert balanced design and Serrated design that minimizes vibration and enhances chip breaking, making it ideal for heavy cutting operations. The center coolant system ensures stable cooling and longer tool life. It supports both Balanced Cutting (AA type) and Stepped Cutting (AB type) for different machining needs. ZACK120–ZACK550 covers boring range Ø120–Ø620 mm. Diameter adjustment is simple and precise, requiring only one wrench.

Product Catalog

ADJUSTABLE BALANCE CUTTER

SK (DIN69871A)

Type
Required Model
- Please enter the model number

This combination does not exist.

Add to Quote

Required Model: Please enter the model number

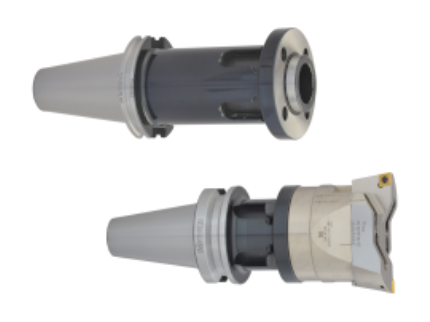

BST BORING HOLDER

Features:

BST tool holders are offered in BT, NT, HSK, DIN, and CAT specifications.
BST tool holders are available in various lengths to meet different machining requirements.

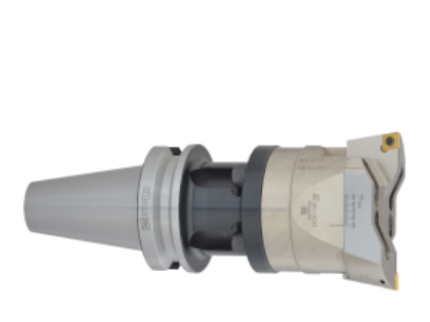

BT50 BST150+ZACK120

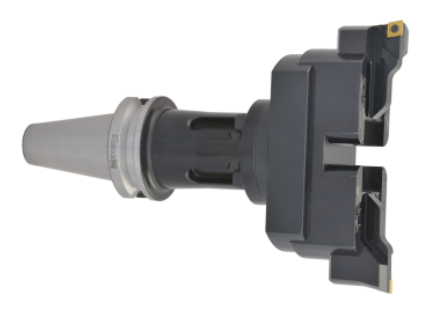

BT50 BST150+ZACK200

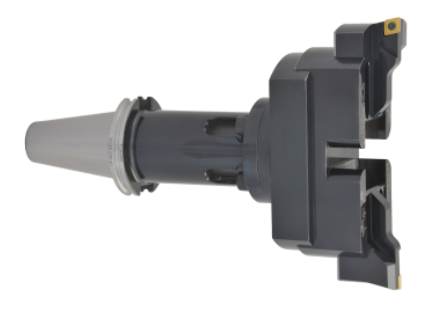

SK50 BST150+ZACK200

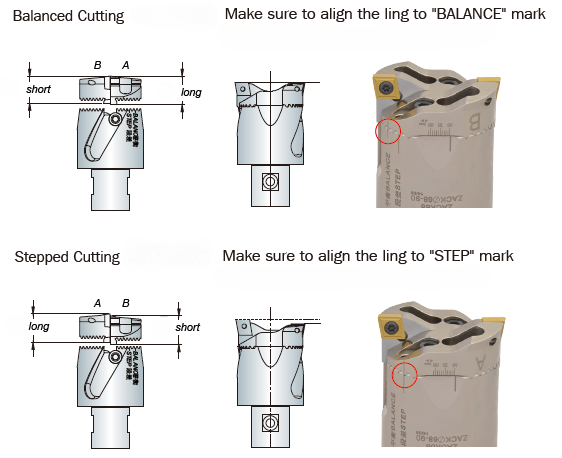

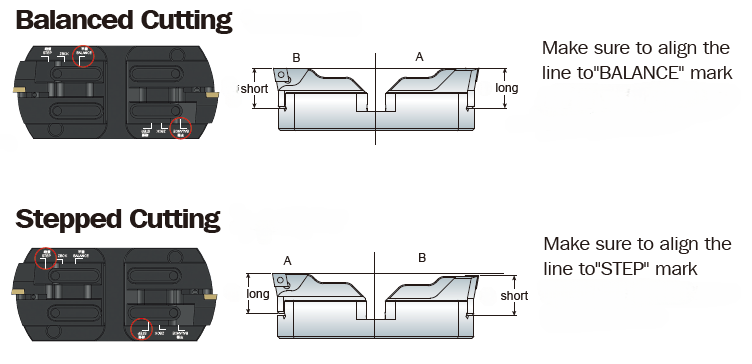

BALANCED/STEPPED CUTTING

Features:

Serrated design make good rigidity and suit for heavy cutting.
Suitable for both of balanced cutting and stepped cutting.

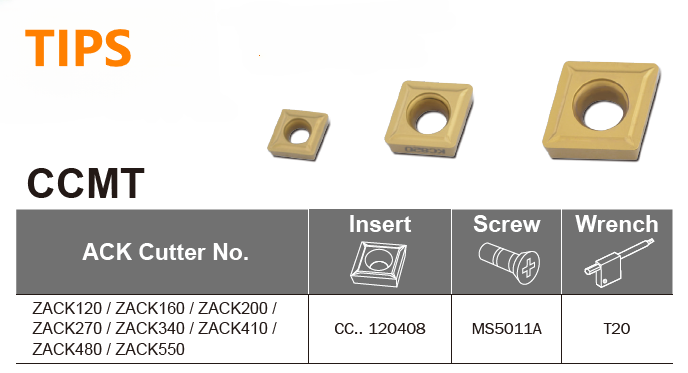

Insert FOR ZACK ADJUSTABLE BALANCE CUTTER

WRENCH TORQUE WRENCH
