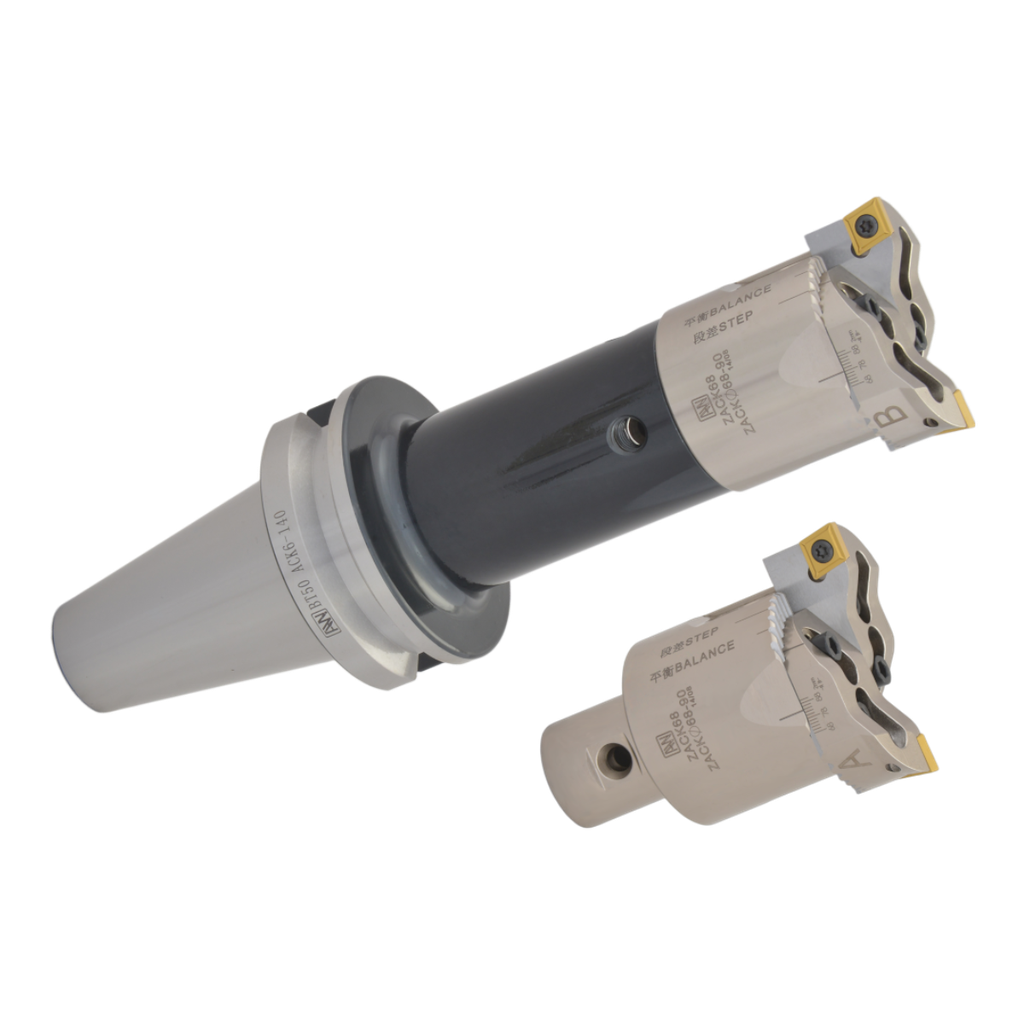

ZACK

ADJUSTABLE BALANCE CUTTER

Applications: Used for internal rough boring to ensure dimensional stability, and high accuracy.

Features

A twin-insert balanced design and Serrated design that minimizes vibration and enhances chip breaking, making it ideal for heavy cutting operations. The center coolant system ensures stable cooling and longer tool life. It supports both Balanced Cutting (AA type) and Stepped Cutting (AB type) for different machining needs. ZACK20–ZACK90 covers boring range Ø20–Ø120 mm. Diameter adjustment is simple and precise, requiring only one wrench.

Product Catalog

ZACK BORING HEAD

HSK-A

SK (DIN69871A)

CAT

ADAPTER

ACCESSORIES

Type
Required Model
- Please enter the model number

This combination does not exist.

Add to Quote

Required Model: Please enter the model number

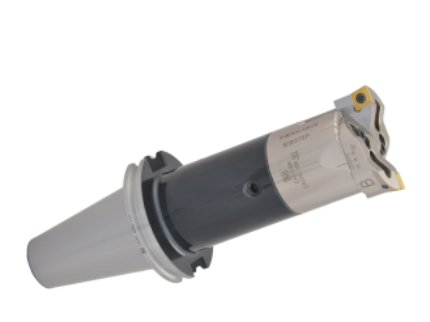

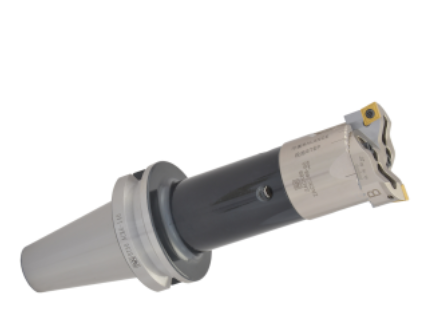

ACK BORING HOLDER

Features:

ACK tool holders are offered in BT, NT, HSK, DIN, and CAT specifications.
ZACK20 ~ ZACK90 boring range: Ø20 ~Ø120mm.
ACK tool holder with through coolant type.
The boring head and insert must be ordered separately.

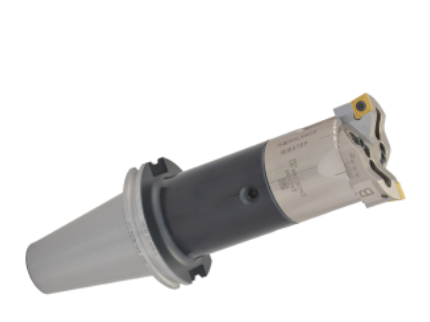

BT50 ACK6-140+ZACK68

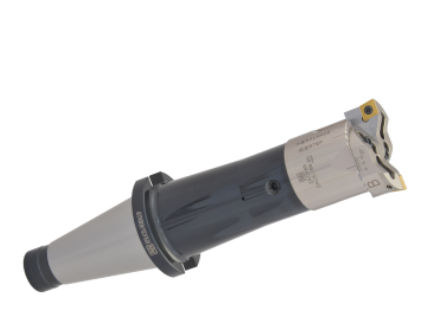

NT50 ACK6-140+ZACK68

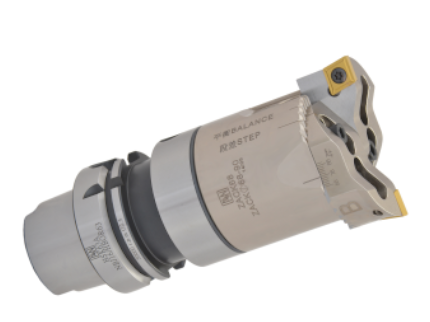

HSK 63A ACK6-55+ZACK68

SK50 ACK6-110+ZACK68

CAT50 ACK6-110+ZACK68

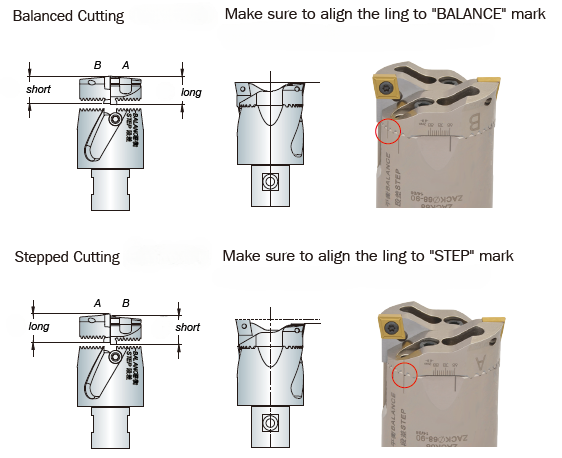

BALANCED CUTTING / STEPPED CUTTING

Features:

Serrated design make good rigidity and suit for heavy cutting.
Suitable for both of balanced cutting and stepped cutting.

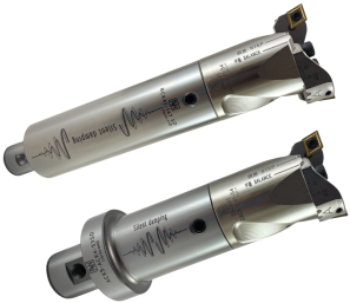

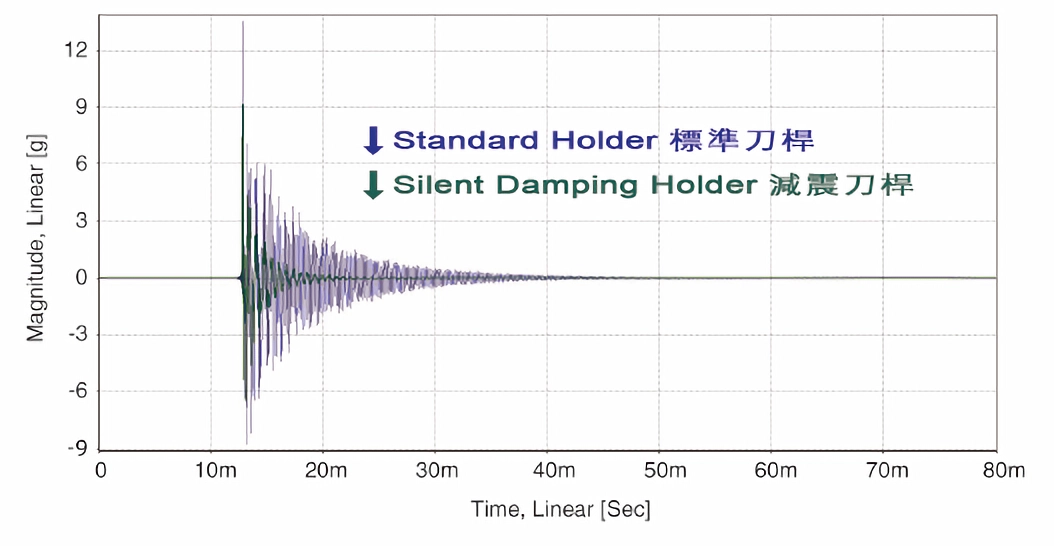

ZACK ACK-SILENT DAMPING EXTENSION ADAPTER / STEPPED ADAPTER

Features:

Coolant through design.
Please do NOT combine with Silent Damping holder. Use with standard ACK tool holder ONLY.

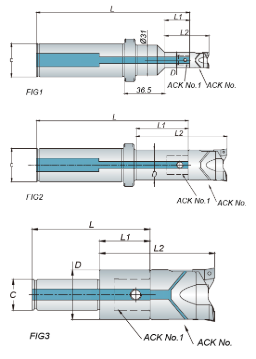

ZACK stepped ADAPTER + ZACK BORING HEAD

Features:

Coolant through design.
L2 is the effective boring depth & L3 is the reference dimension for boring head installation.

ZACK exTENSION ADAPTER + ZACK BORING HEAD

Features:

Coolant through design.
Tool vibration will be occur when the L/D1 ratio increase.

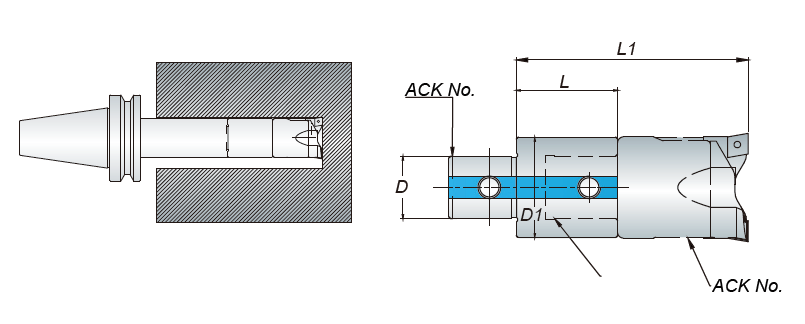

ZACK STRAIGHT SHANK ADAPTER + ZACK BORING HEAD

Features:

Coolant through design.
Tool vibration will be occur when the L/D1 ratio increase.

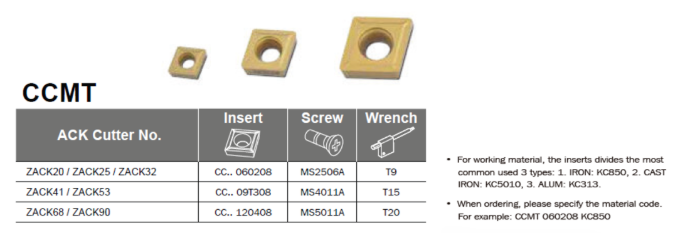

PARTS insert and side lock screw for ACK

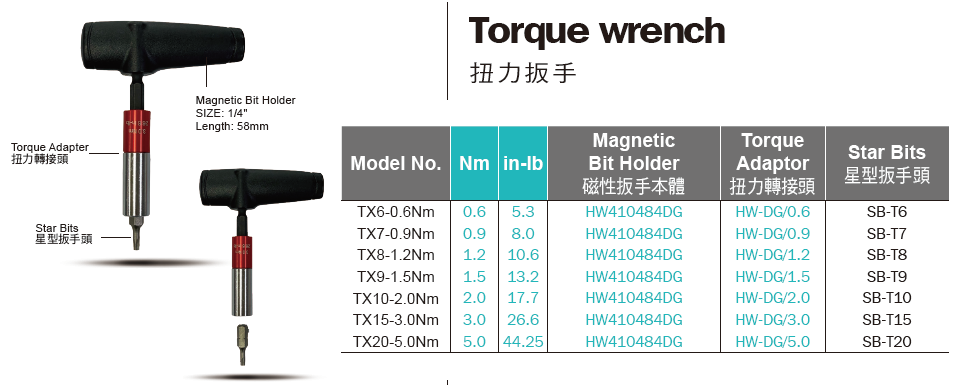

WRENCH TORQUE WRENCH
