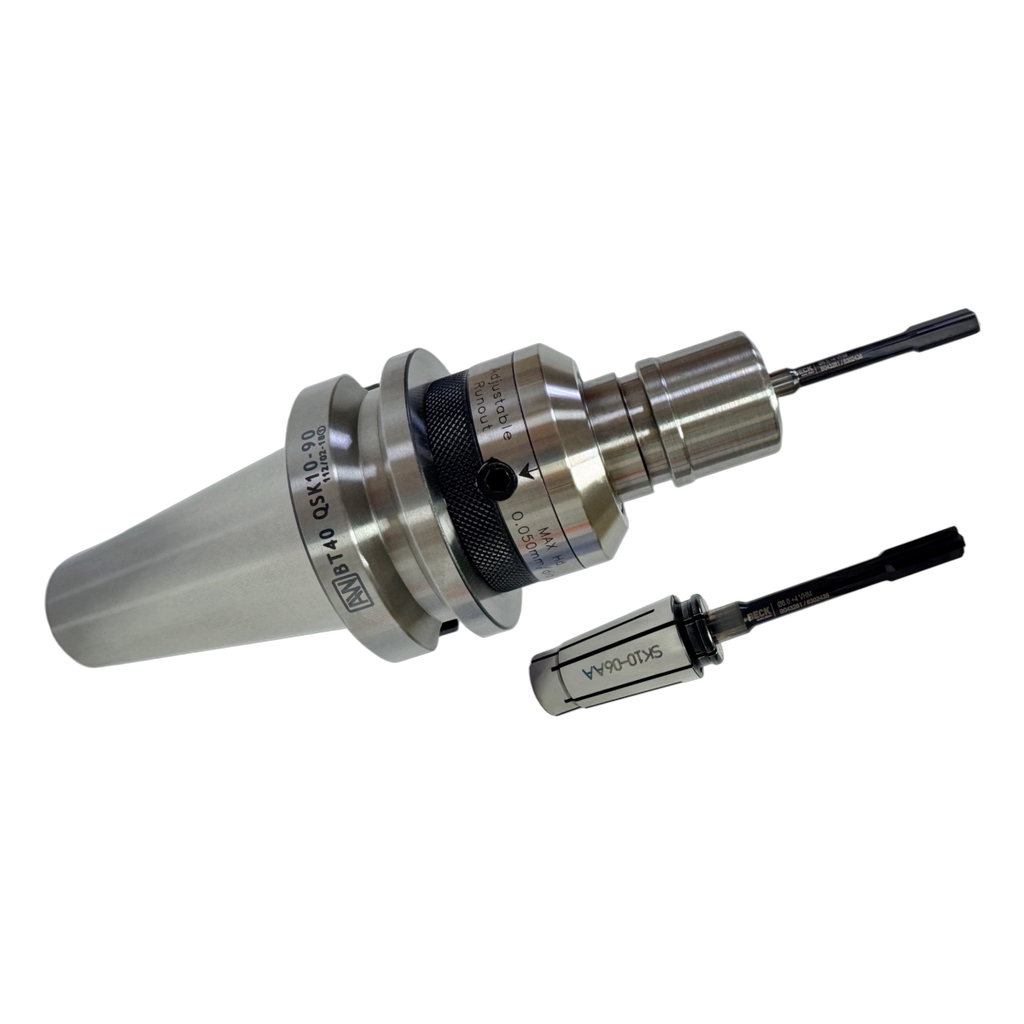

QSK

ZERO ADJUSTABLE PRECISION HOLDER
https://www.annwaytools.com/web/image/product.template/21/image_1920?unique=7109586

Applications: For Drills, Reamers.

Features

  • Achieve the stability of working processing and improved surface finish for workpiece
  • Simple design, easy and quick direct adjustment of tool runout accuracy on the machine
  • Effectively corrects spindle deflection caused by wear, enhances stability and surface finish for working operations.
  • Extend tool lifetime.
  • Suit for Drills, Reamers.

BT

HSK-A

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
​sK HIGH PRECISION COLLET ASK NUTASK WRENCH

​sK HIGH PRECISION COLLET

3 types to choose:

SK Collet -Standard Type: Collet diameter ≤ 3mm : Clamping range 0.25mm. Collet diameter > 3mm: Clamping range 0.5mm.

SK Collet-E- For End Mill: Provides 20% more than clamping force than the standard type. Ensures high stability performance during milling.

SK Collet-CL-Coolant Type: Now available for SK10 and SK16 type.


Collet Grade
 Rount - Max 4 x D
A Grade 10µ
AA Grade5µ

ASK NUT

ASK nut is designed with bearing washer-4 types to choose:

  1. High Speed Nut: SK06, SK10, SK13, SK16, SK20, SK25
  2. Hex Type Nut:  SK06, SK10, SK13, SK16
  3. C Type Nut: SK16, SK20, SK25
  4. Coolant Nut: SK06, SK10, SK13, SK16

ASK WRENCH

ASK wrench available for: Bearing wrench, C-type wrench, Hex wrench, Torque wrench.
