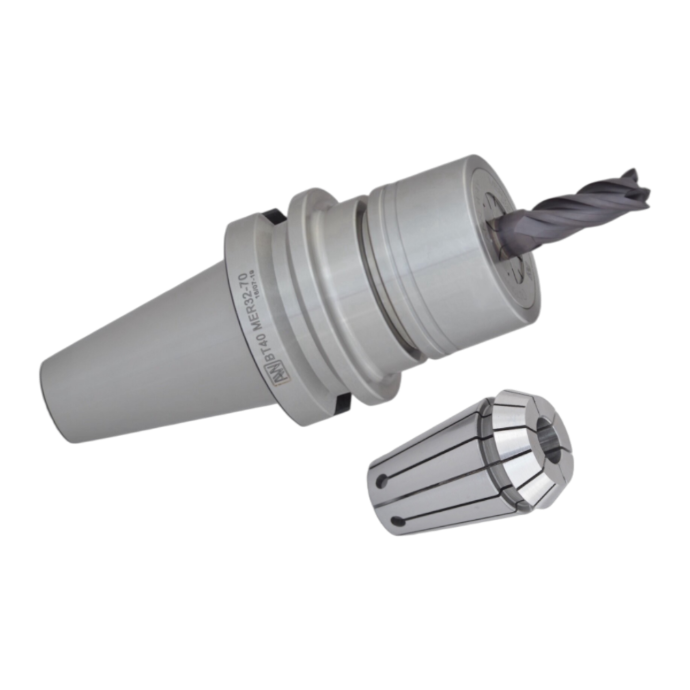

MER

SPRING COLLET CHUCK
https://www.annwaytools.com/web/image/product.template/16/image_1920?unique=da47a18

Applications: For Drills, Reamers, Tap, Rough milling and Carbide Finishing End mills.

Features

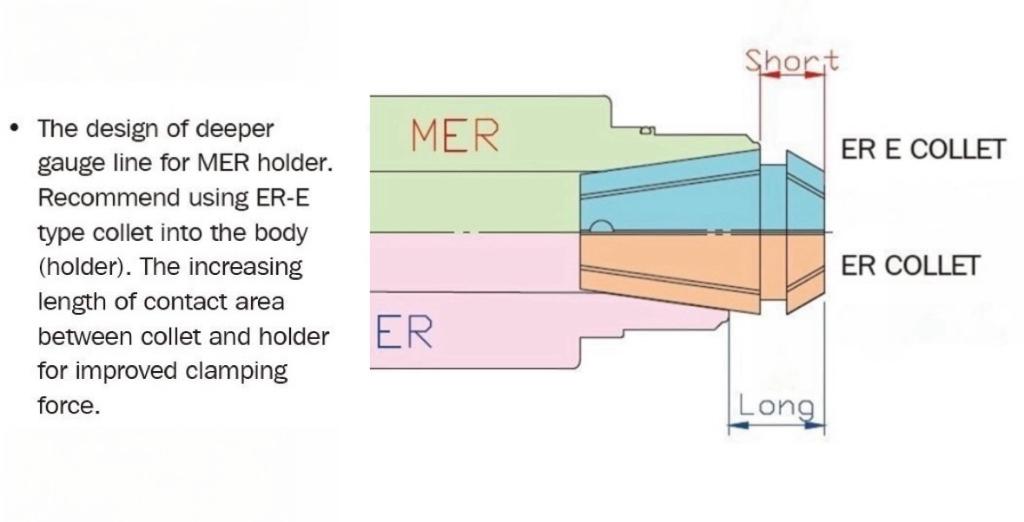

  • MER series has larger contact area and shorter overhang length compared to ER series and providing better radial cutting force. High speed bearing nut design offers stronger clamping force than standard ER nuts, ensuring machining stability for high speed and precision cutting. Recommended with ER-E collet for end mills to achieve the best results. MER series is balanced at 30,000 r.p.m G2.5, ensuring stable performance for high speed.

BT

HSK-A

SK (DIN69871A)

CAT

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
​mEr COLLET ​MEr NUT mer WRENCH

​mEr COLLET

​


  • ER Collet-E- For End Mill: ER16E, ER20E, ER25E, ER32E.
  • MER system used with standard ER collet, the clamping range is reduced from 1mm to 0.5mm. It is also can be used ER-CL and ER-GB Collet.




​MEr NUT

MER nut is designed with 2 types to choose:

MER High Speed Bearing Nut: CN-MER16, CN-MER20, CN-MER25, CN-MER32.

MER-SX High Speed Nut: CN-MER16-SX, CN-MER20-SX, CN-MER25-SX, CN-MER32-SX.

mer WRENCH

MER wrench available for: Bearing wrench, Torque wrench.
