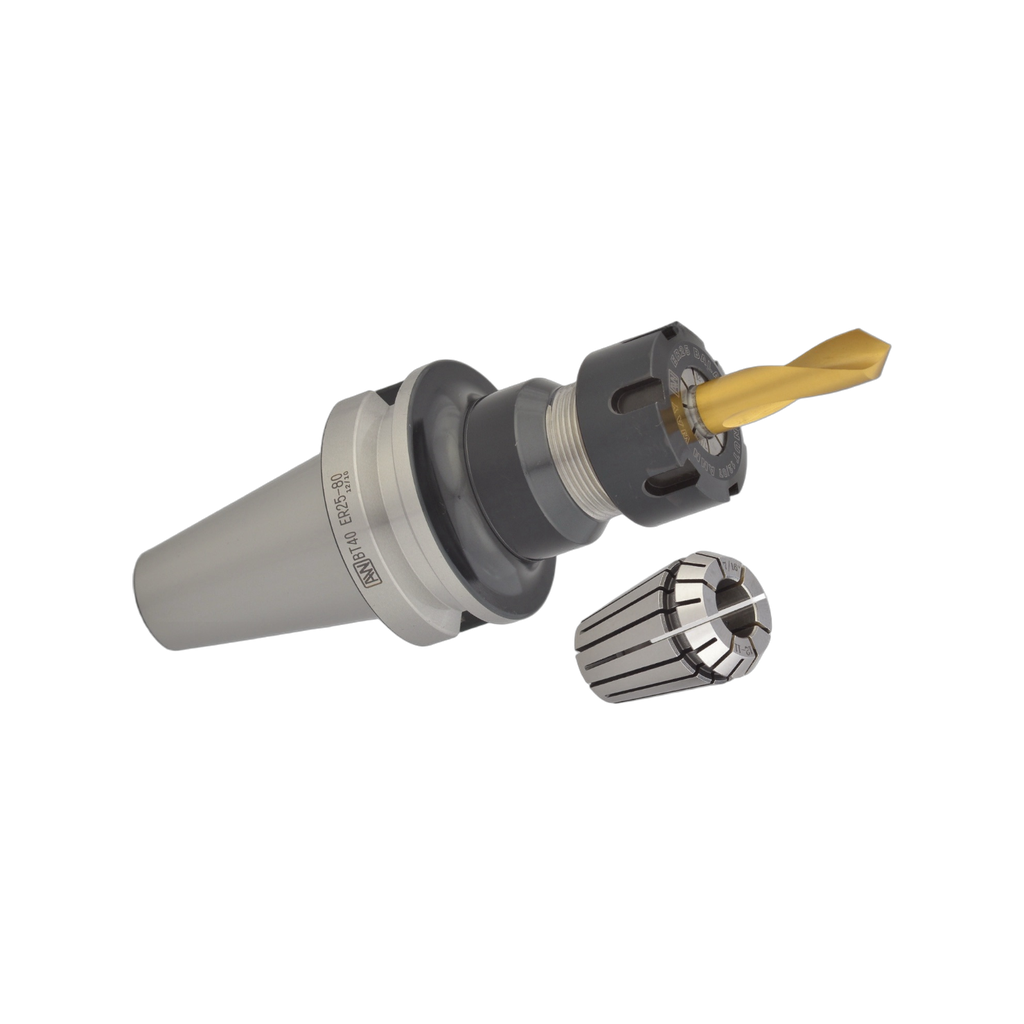

ER

SPRING COLLET CHUCK
https://www.annwaytools.com/web/image/product.template/15/image_1920?unique=677a2d8

Applications: For Drills, Reamers, Tap, Rough milling, and Carbide Finishing End mills.

Features

  • ER collet chuck holder offers widely and high flexibility for machining applications. Spring collet design enables clamping of various tools, including drills, reamers, end mills and taps.
  • ER series is available in ER16/ER20/ER25/ER32 and ER40 specifications to accommodate different tool sizes. Optional accessories include power ball bearing nut, high speed bearing nut and wrench, further enhancing rigidity and various application.

BT

NT.MTA.MTB.C.R8.JT

ISO

NBT

HSK-A

HSK-E

HSK-F

SK (DIN69871A)

SK (DIN2080)

CAT

ABT

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
​Er COLLETer NUTer Wrench

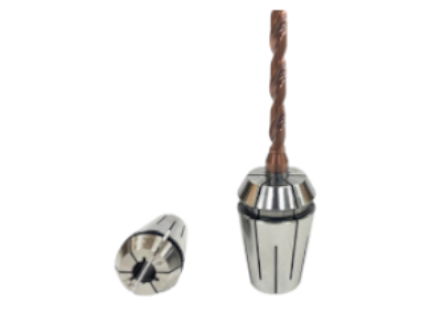

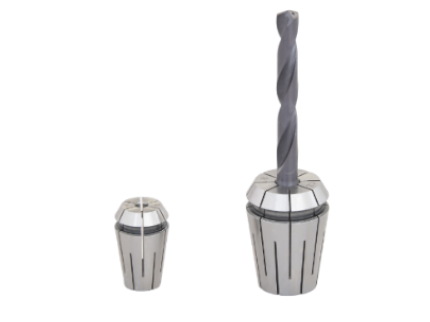

​Er COLLET

5 types to choose:


ER Collet-Standard Type: ER08~ ER20 suggested clamping range should be 0.5mm, ER25~ER40 suggested clamping range should be 1mm, ER50 suggested clamping range should be 2mm.

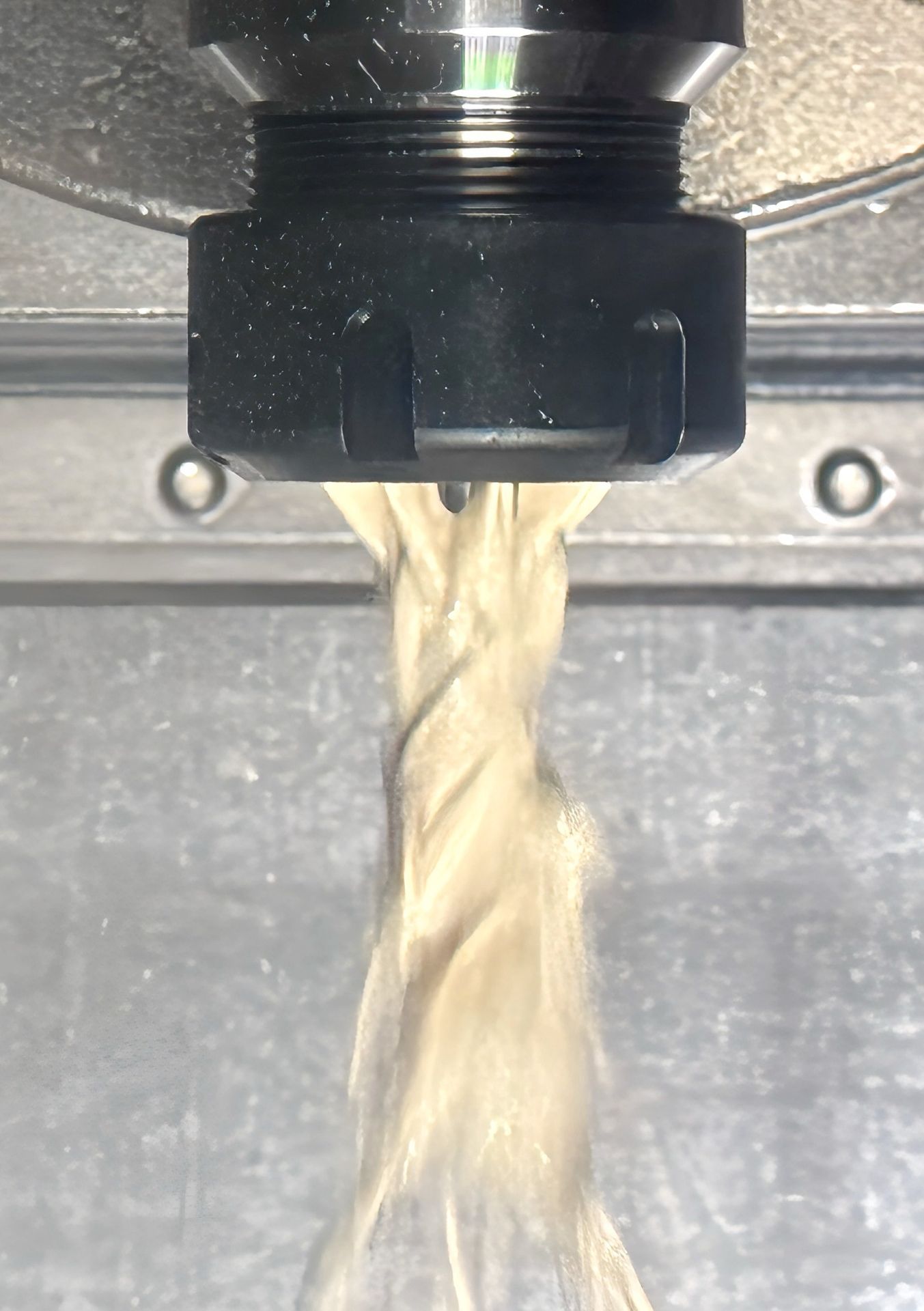

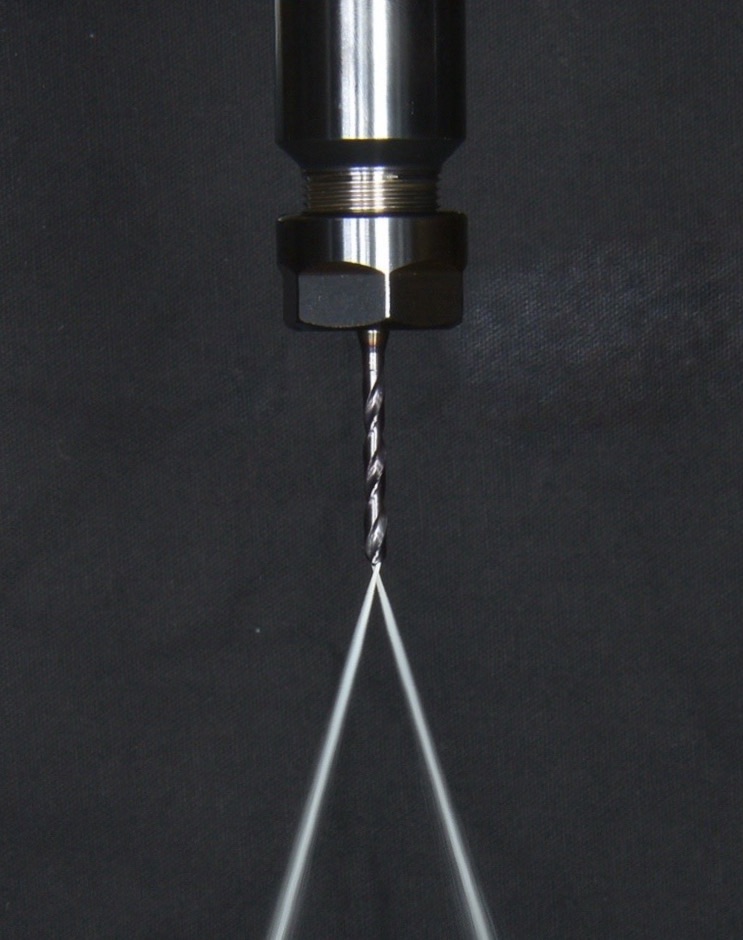

ER Collet-CL- Coolant Type: ER16-CL, ER20-CL, ER25-CL, ER32-CL, and ER40-CL.

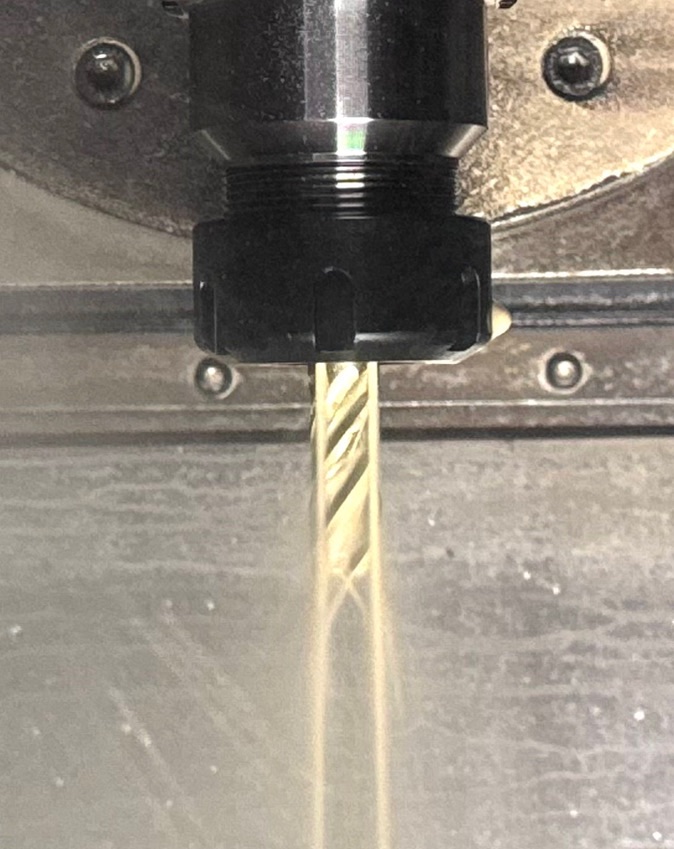

ER Collet-JCL- Jet Coolant Type: ER16-JCL, ER20-JCL, ER25-JCL, and ER32-JCL.


ER Collet-E- For End Mill: ER16E, ER20E, ER25E, ER32E.


ER Collet-GB -For Tap Collet: ER16GB, ER20GB, ER25GB, ER32GB, ER40GB.


er NUT

ER nut is designed with 4 types to choose:

  1. Standard Nut: CN11, CN16, CN20, CN25, CN32, CN40, CN50.
  2. M type Nut: CNM08, CNM11, CNM16, CNM20.
  3. Power Ball Bearing Nut: CN16-B, CN20-B, CN25-B, CN32-B, CN40-B.
  4. High Speed Bearing Nut: CN-GER16, CN-GER20, CN-GER25, CN-GER32.

er Wrench

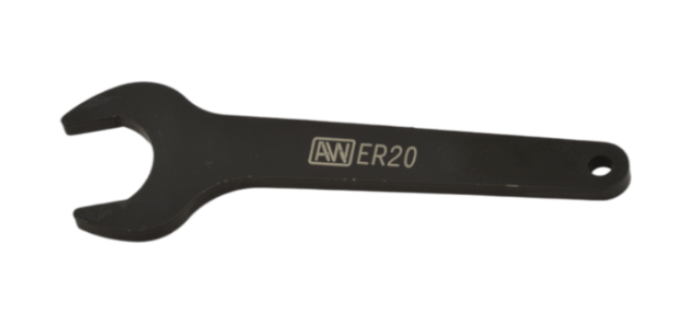

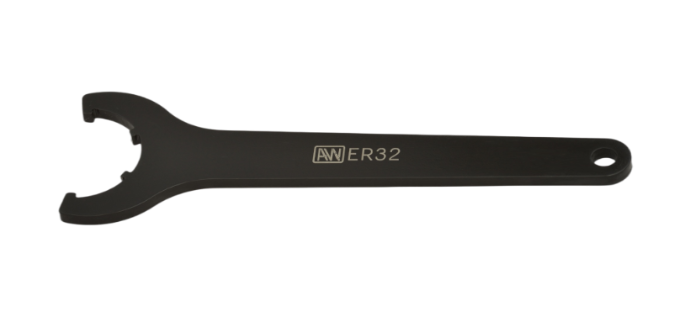

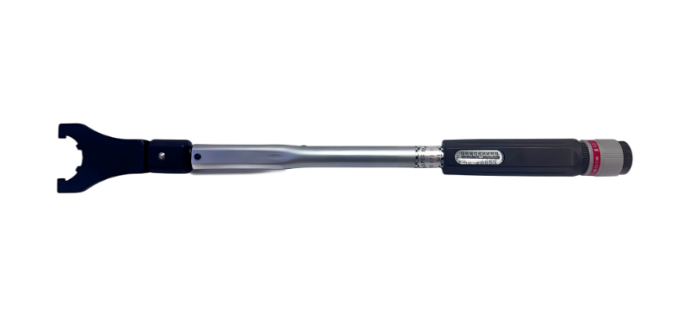

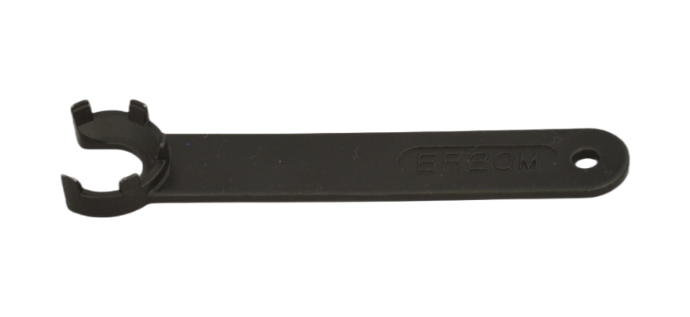

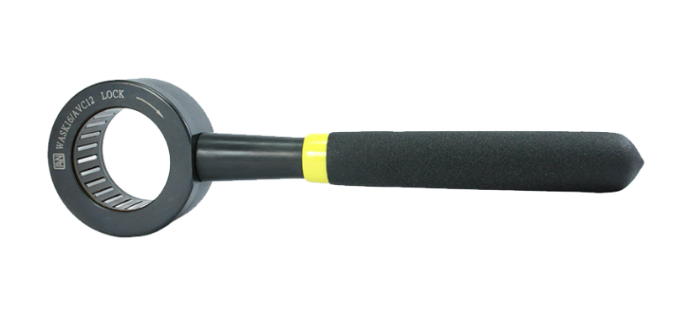

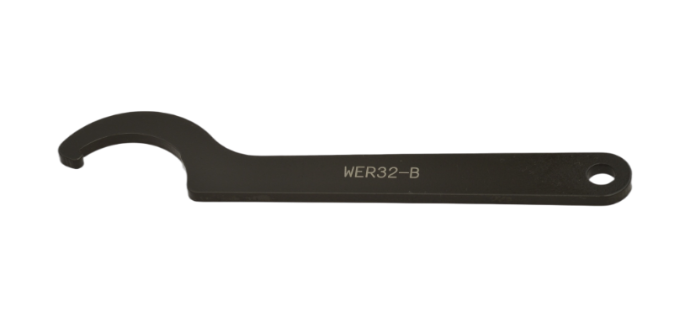

ER wrench available for: Standard wrench, M-type wrench, C-type wrench, Bearing wrench, Torque wrench.
