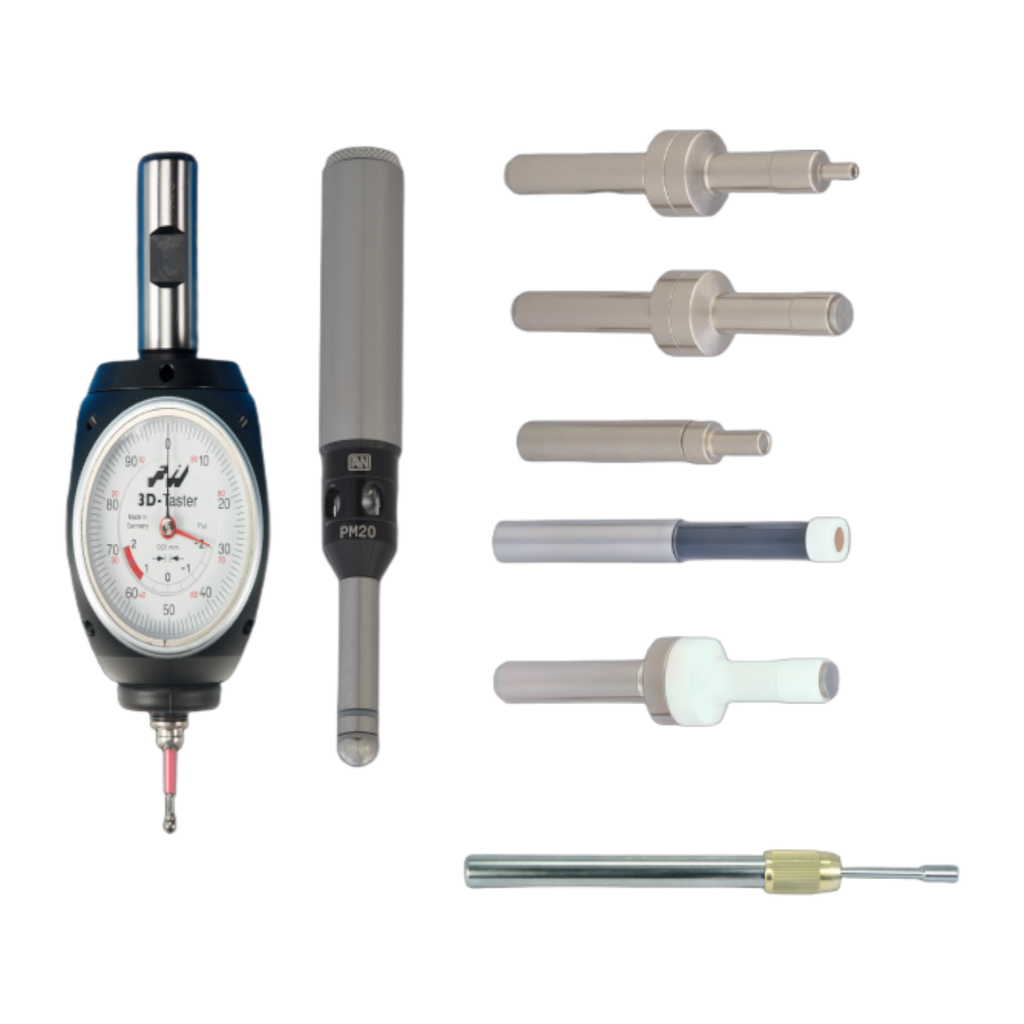

EDGE FINDER

https://www.annwaytools.com/web/image/product.template/27/image_1920?unique=39cd514

 Applications: For locating the workpiece edge or check the machining center position.

Features

  • Edge finder is used to locate the workpiece edge or center point in order to determine the machining center position.

EDGE FINDER

  • Required Model

This combination does not exist.

Type: EDGE FINDER
Required Model: Please enter the model number

PM10/ ME-610 MECHANICAL TYPE

Features:

  • Finds workpiece edges by rotation and contact.



WH-1010/ WH-1020 CERAMIC TYPE

Features:

  • WH series is Non-magnetic ceramic side head.

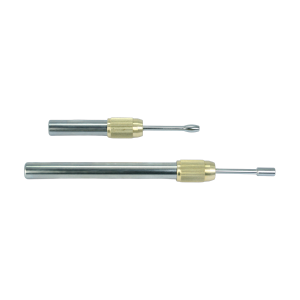

ME-P1/ ME-P2 ROTARY TYPE

Features:

  • The edge finder has made rust prevention processing.

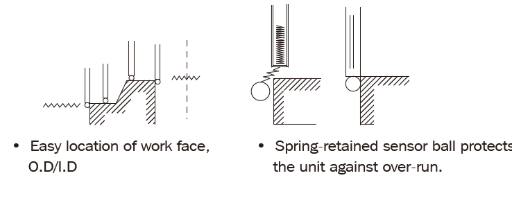

PM20 HIGH SENSITIVE ELECTRONIC EDGE FINDER

Features:

  • High sensitive edge sensor with red led lamp and beep sound.
  • Instant indication by red led lamp at very light contact of sensor ball with workpiece.

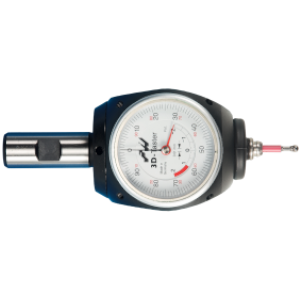

3D SENSOR HAIMER

Features:

  • A high-precision machine tool measuring instrument, designed for accurately locating the edge of workpieces.

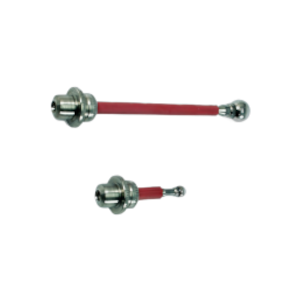

  • Accessories options
    Standard: 3D short needle- 4 mm diameter.
    Optional: 3D long needle- 8 mm diameter.
