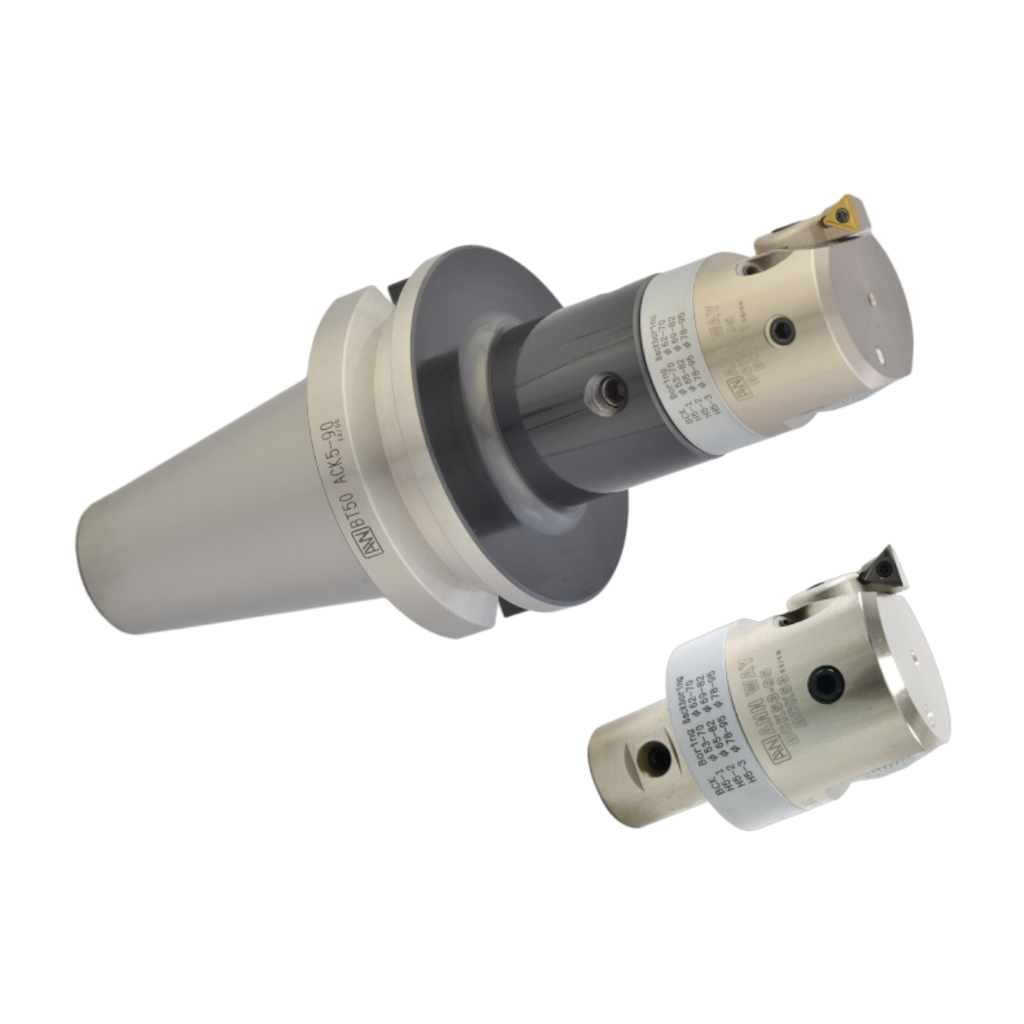

BCK

MICRO BORING HEAD

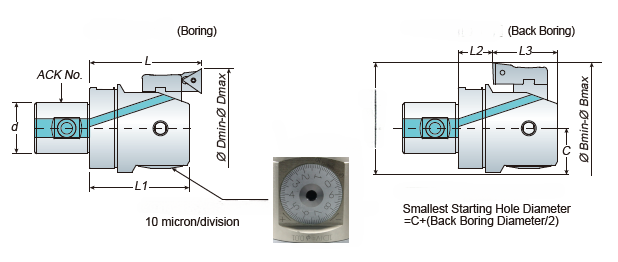

Applications: Used for precision internal machining. It supports both boring and back-boring operations, ideal for mold making, mechanical parts, and high-accuracy hole finishing.

Features

Pre-balanced design ensures stable machining accuracy, suitable for boring diameters Ø20~Ø203 mm.

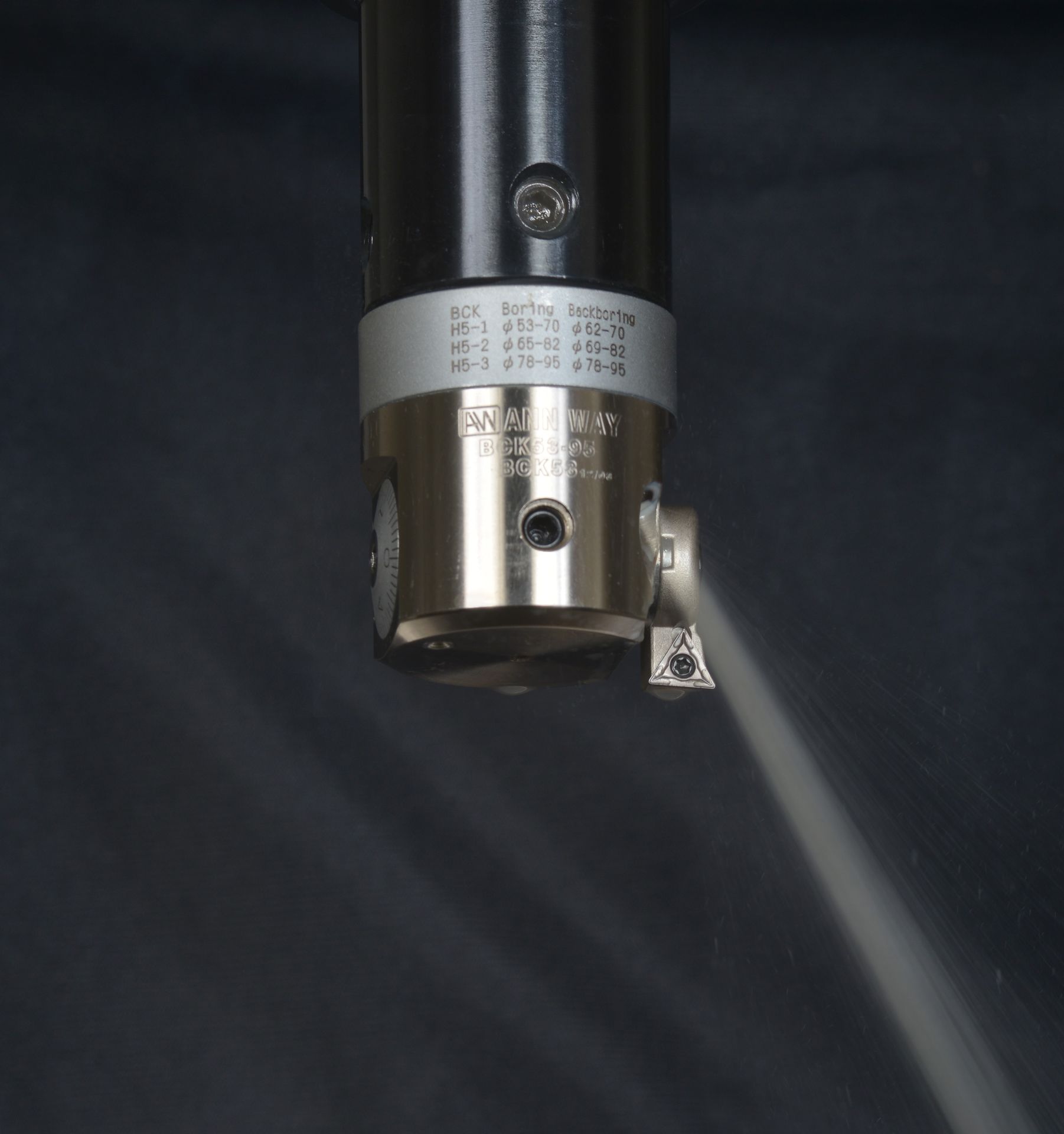

BCK boring heads feature coolant design and support both boring and back-boring operations, three insert holders sizes available for each head.
Each boring head comes with a insert holder (BCK H#-1), other sizes must be purchased separately.
Insert must be ordered separately.

Product Catalog

BCK BORING HEAD

ACK-SD, HIGH RIGIDITY TYPE

HSK-A

SK (DIN69871A)

CAT

ADAPTER

ACCESSORIES

Type
Required Model
- Please enter the model number

This combination does not exist.

Add to Quote

Required Model: Please enter the model number

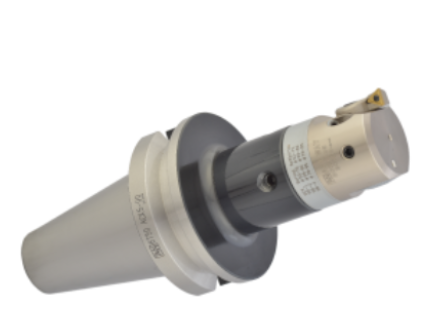

ACK BORING HOLDER

Features:

ACK toolholders are offered in BT, NT, HSK, DIN, and CAT specifications.
BCK20 ~ BCK100 boring range: Ø20 ~Ø203mm.
ACK tool holder with through coolant type.
The boring head and insert must be ordered separately.

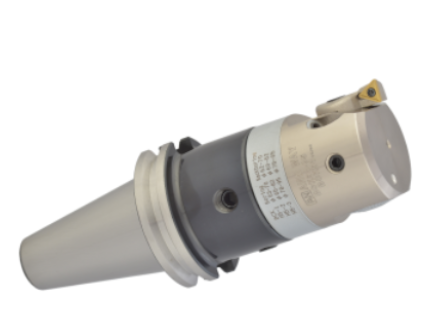

BT50 ACK5-90+BCK53

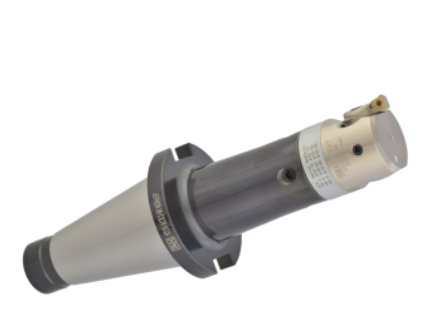

NT50 ACK5-90+BCK53

HSK63A ACK5-80+BCK53

SK40 ACK5-80+BCK53

CAT40 AC5-80+BCK53

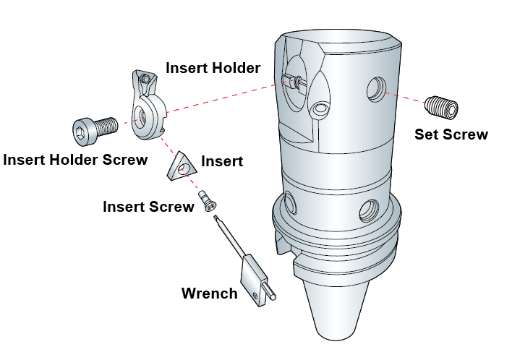

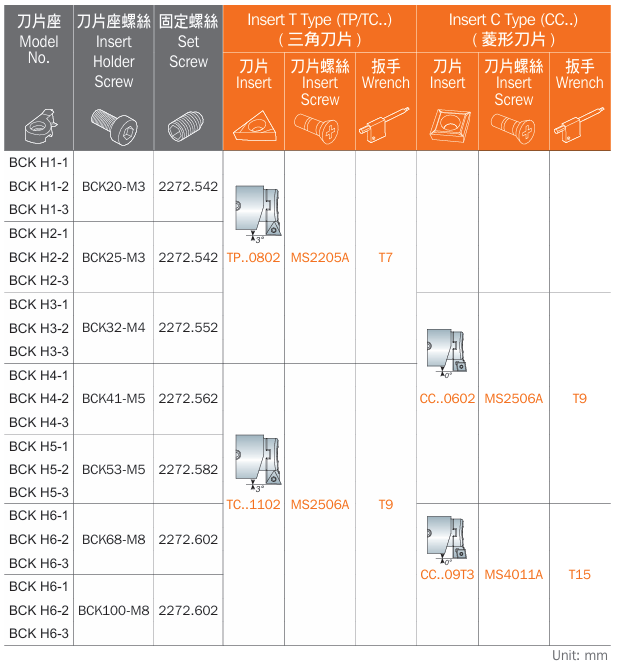

BCK INSERT HOLDER / INSERT / SPARE PARTS

Features:

When ordering, please specify the insert type (e.g. BCK H4-1-T or BCK H4-1-C).
Insert must be ordered separately.

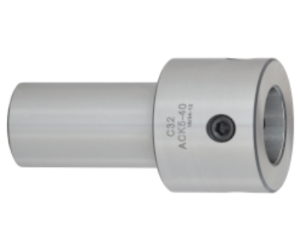

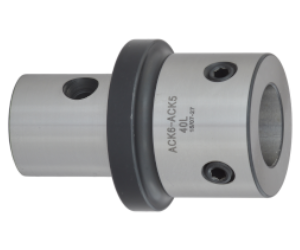

BCK ACK-CARBIDE EXTENSION ADAPTER

Features:

Coolant through design.
L1 is the reference dimension for boring head installation.

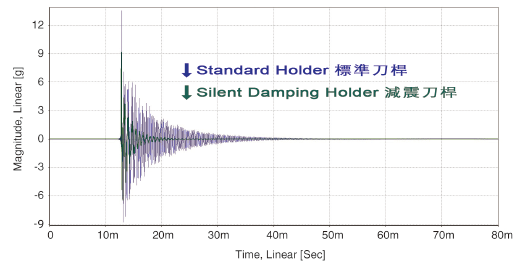

BCK ACK-SILENT DAMPING EXTENSION ADAPTER / STEPPED ADAPTER

Features:

Coolant through design.
Please do NOT combine with Silent Damping holder. Use with standard ACK tool holder ONLY.

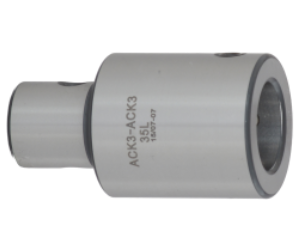

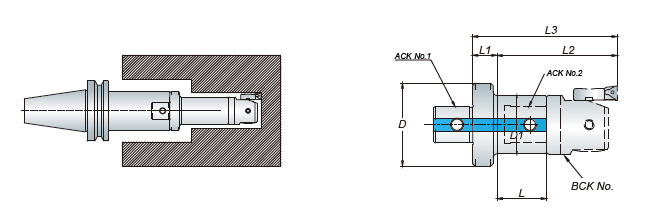

BCK ACK-STEPPED ADAPTER + BCK MICRO BORING HEAD

Coolant through design.
L2 is the effective boring depth & L3 is the reference dimension for boring head installation.

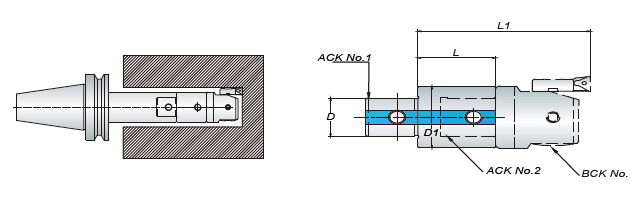

BCK ACK-EXTENSION ADAPTER + BCK MICRO BORING HEAD

Features:

Coolant through design.
Tool vibration will be occur when the L/D1 ratio increase.

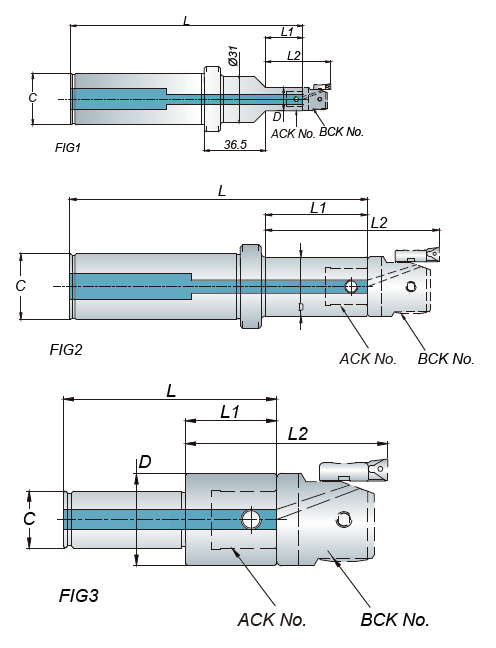

BCK ACK-STRAIGHT SHANK ADAPTER + BCK MICRO BORING HEAD

Features:

Coolant through design.
Tool vibration will be occur when the L/D1 ratio increase.

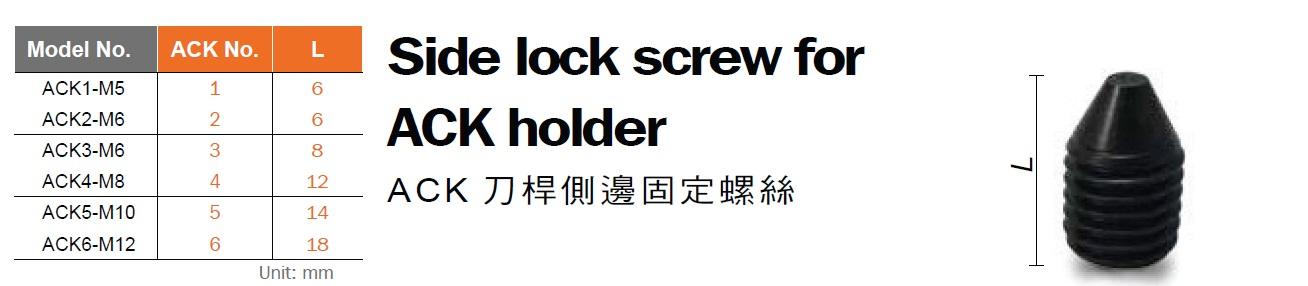

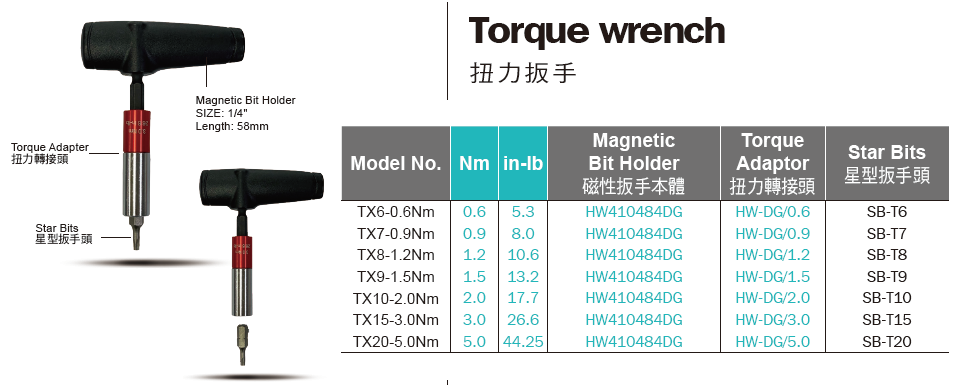

WRENCH and screw TORQUE WRENCH and side lock screw
