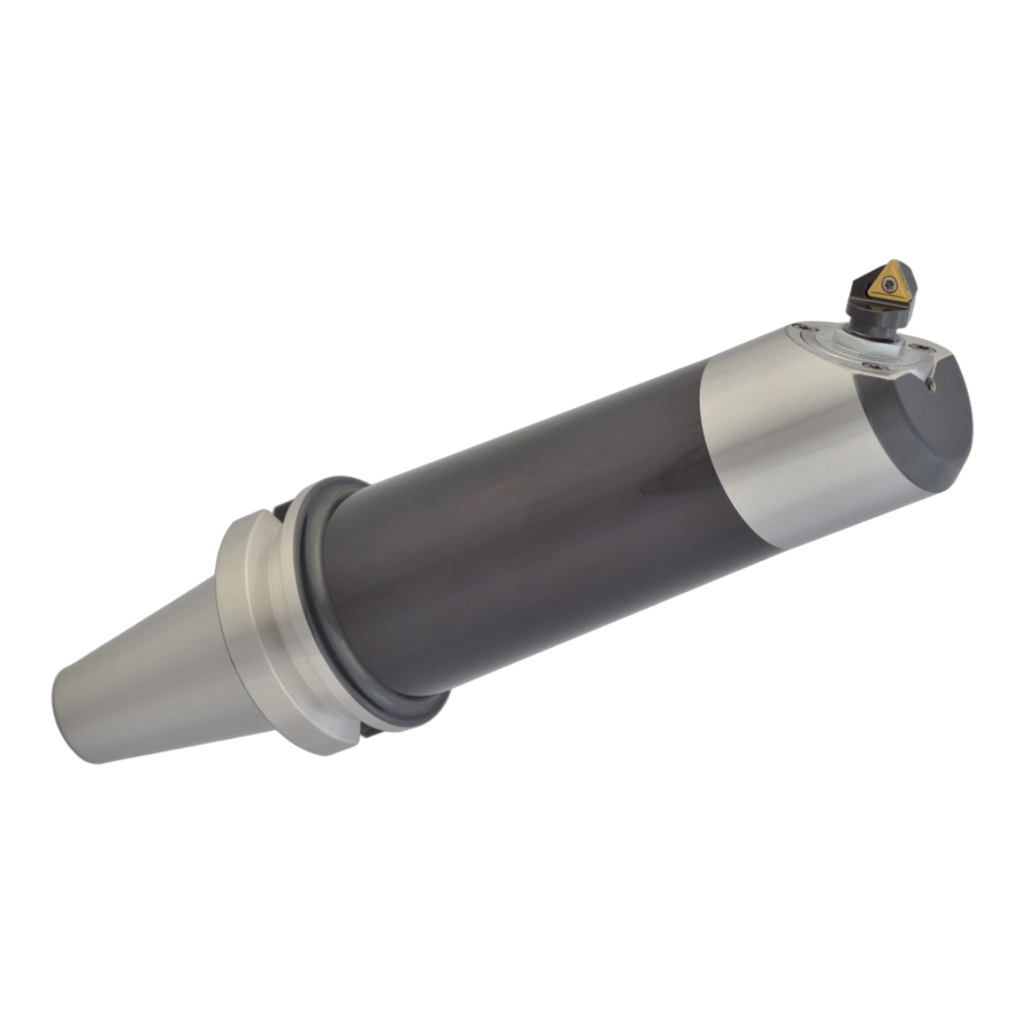

BCA

MICRO BORING HOLDER

Applications: Used for internal boring, back boring, and external boring to ensure dimensional stability, and high accuracy.

Features

BCA suitable for internal and external machining on machining centers, ensuring precise holes and smooth finishes, widely used in engine housings and hydraulic parts.
BCA boring head must be ordered separately.
BCA is produced by order.

Product Catalog

MBT

SK (DIN69871A)

ACCESSORIES

Type
Required Model
- Please enter the model number

This combination does not exist.

Add to Quote

Required Model: Please enter the model number

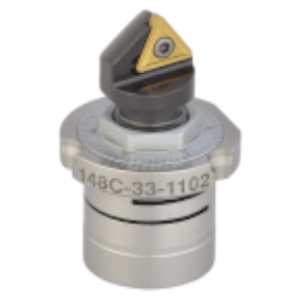

R/L148C FINE BORING HEAD

Feature:

Can be mounted in blind holes.
Adjustment is made from the front.
Boring head features a self-locking function. No unlocking required before setting, and no locking needed after adjustment.
T-MAX-U screw clamping.
Insert must be ordered separately.
For working material, the inserts divides the most common used 3 types: 1. IRON: KC850, 2. CAST IRON: KC5010, 3. ALUM: KC313.
When ordering, please specify the material code.
For example: CCMT060204 KC850.

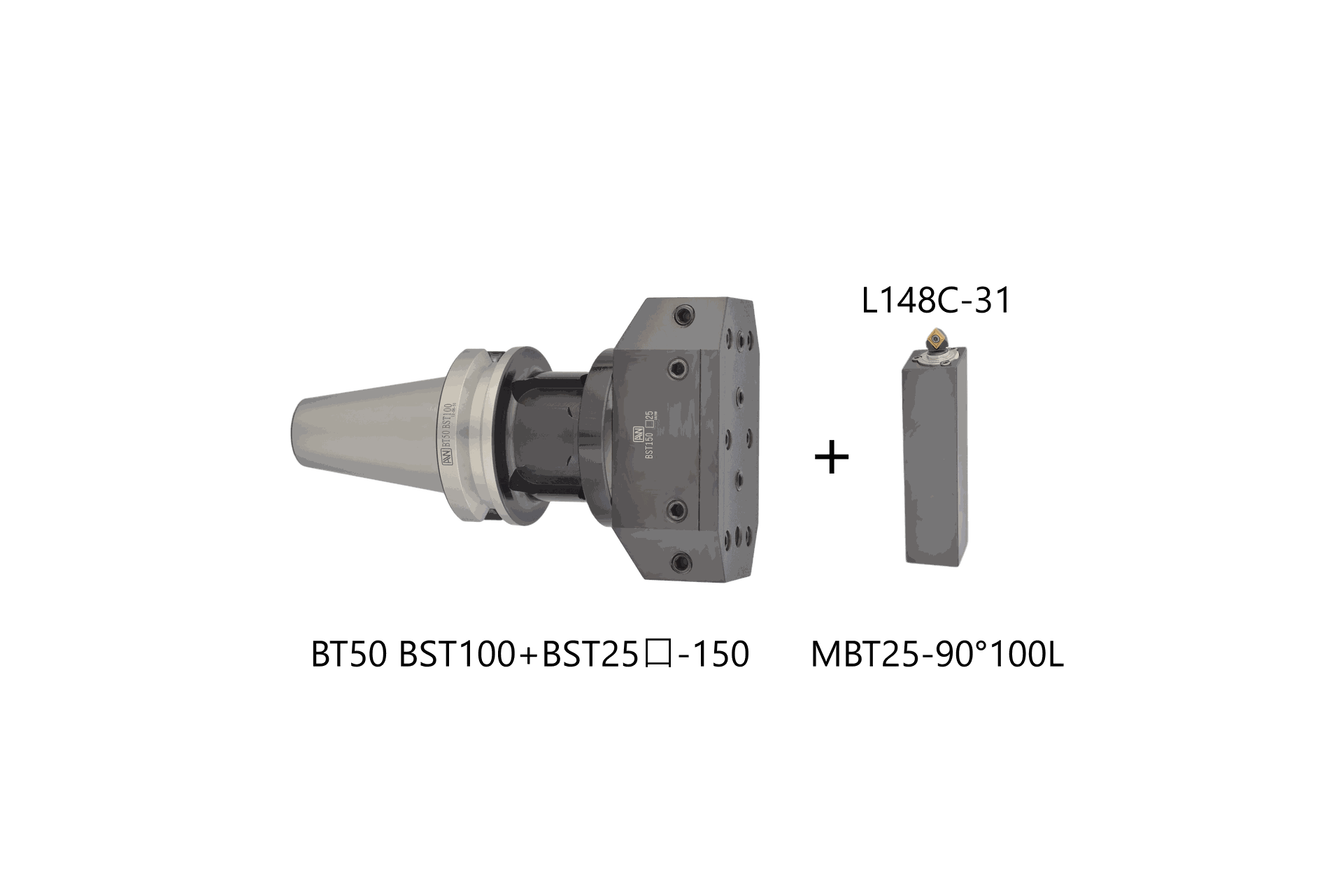

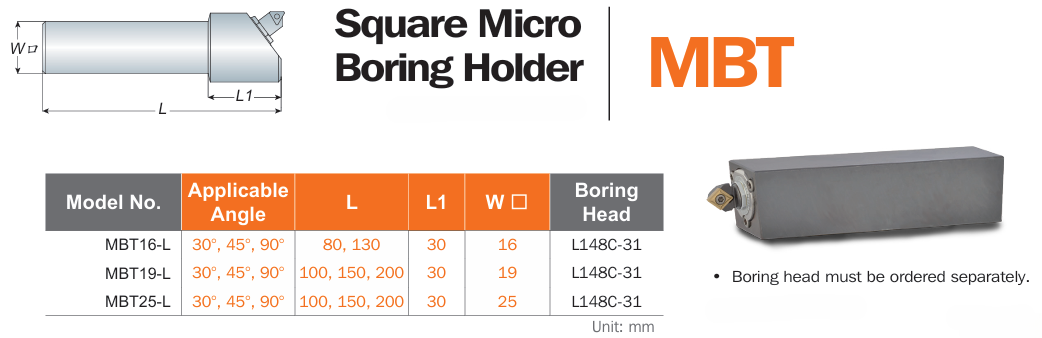

MBT SQUARE MICRO BORING HOLDER

Used in combination with BST tool holders and BST boring block.
