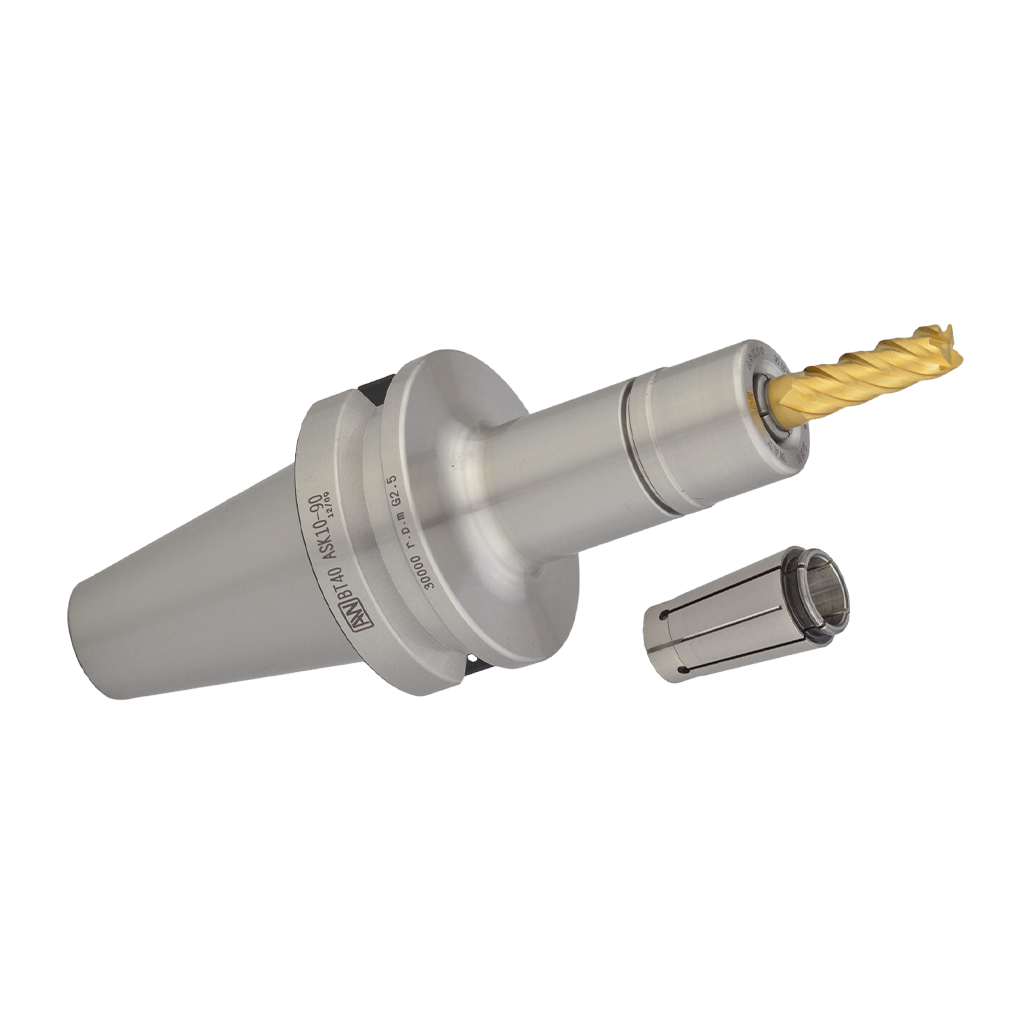

ASK

HIGH SPEED COLLET CHUCK

Applications: For Drills, Reamers and Carbide Finishing End mills.

Features

ASK tooling systems are suitable for high speed and high precision cutting. ASK-T series designed with tapered type for superior cutting rigidity.
The nut adopts a special bearing washer design which reduces cutting vibration at high speeds while improving machining performance.
ASK series is balanced at 30,000 r.p.m G2.5, ensuring stable performance.

Product Catalog

ISO

NBT

HSK-A

HSK-E

HSK-F

SK (DIN69871A)

CAT

ABT

ACCESSORIES

Type
Required Model
- Please enter the model number

This combination does not exist.

Add to Quote

Required Model: Please enter the model number

VIDEO

SK HIGH PRECISION COLLET

3 types to choose:

SK Collet -Standard Type: Collet diameter ≤ 3mm : Clamping range 0.25mm. Collet diameter > 3mm: Clamping range 0.5mm.

SK Collet-E- For End Mill: Provides 20% more than clamping force than the standard type. Ensures high stability performance during milling.

SK Collet-CL-Coolant Type: Now available for SK10 and SK16 type.

Collet Grade	Rount - Max µ 4 x D
A Grade	10µ
AA Grade	5µ

ASK NUT

ASK nut is designed with bearing washer-4 types to choose:

High Speed Nut: SK06, SK10, SK13, SK16, SK20, SK25
Hex Type Nut: SK06, SK10, SK13, SK16
C Type Nut: SK16, SK20, SK25
Coolant Nut: SK06, SK10, SK13, SK16

ASK WRENCH

ASK wrench available for: Bearing wrench, C-type wrench, Hex wrench, Torque wrench.

OUR APPLICATIONS

Discover our full range of tool holders engineered for precision, speed, and performance in every machining application.

Milling Holder

Our tool holders ensure excellent rigidity and vibration resistance, enabling smooth and stable high-speed milling. Perfect for precision machining of flat surfaces, contours, and complex geometries.

Milling Holder

Drilling Holder

Designed for accurate hole-making, our holders provide secure clamping for drills, reducing runout and improving efficiency in general-purpose and deep-depth drilling applications.

Drilling Holder

Reaming Holder

Ideal for finishing operations that demand fine surface quality and tight tolerances. Our tool holders support high concentricity for smooth and precise hole expansion.

Reaming Holder

Tapping Holder

Designed for precise threading operations, our tapping holders ensure secure tool retention and minimize vibration, enabling accurate and efficient thread cutting. Ideal for high-speed and deep-thread applications, they provide consistent performance and extend tool life.

Tapping Holder

Boring System

Provides secure and rigid support for boring operations, enhancing accuracy and surface quality. Suitable for both fine and deep boring, ensuring minimal tool runout.

Boring System

Multitasking Turning Tool

Designed for versatility in multitasking turning centers, our holders maintain high rigidity and precision. Enables efficient turning, milling, and drilling operations within a single setup.

Multitasking Turning Tool
