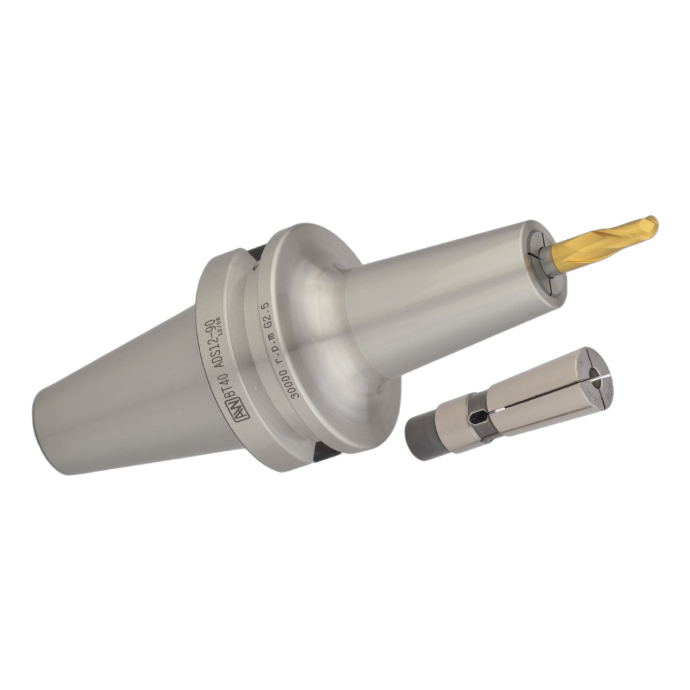

ADS

HIGH SPEED COLLET CHUCK
https://www.annwaytools.com/web/image/product.template/19/image_1920?unique=2efa8d3

Applications: For Drills, Reamers, Tap, and Carbide Finishing End mills.

Features

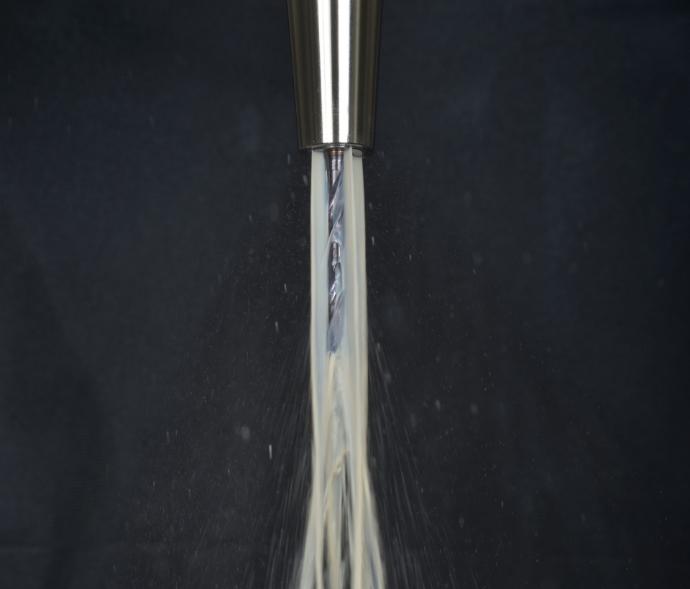

  • ADS series is designed for high speed and high precision cutting. Without nut design, it effectively reduces the interference and vibration during the cutting. With pull back collet design, easy and convenient tool clamping. ADS system is balanced at 30,000 r.p.m G2.5, ensuring stable performance at high-speed cutting. ADS06~ADS16 -CL types are available. Please specify by adding“–CL” to the model number when ordering. Example: BT40 ADS12-090-CL.

BT

C

ISO

NBT

HSK-A

HSK-E

HSK-F

SK (DIN69871A)

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
VIDEOADS Collet TYPES ​Wrench

VIDEO





ADS Collet

ADS Standard Collet: ADS06, ADS08, ADS10, ADS12, ADS16.




Collet Grade

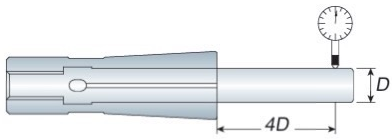

 Rount - 4 x D
A Grade ≤10µ
AA Grade≤ 5

TYPES

ADS06 Slim Chuck
The design of the slim chuck support sufficient length. The five-axis machining or mold processing are very suitable.

ADS08, 10, 12, 16 Standard Type
The design is suitable for high-speed and high precision cutting. It can reduce interference and more stable when the cutting processing.

ADS12, 16, 20 Thick-Wall Type
The design can increase clamping force and having the excellent vibration damping of performance for get the optimized benefit from the machine and tool.

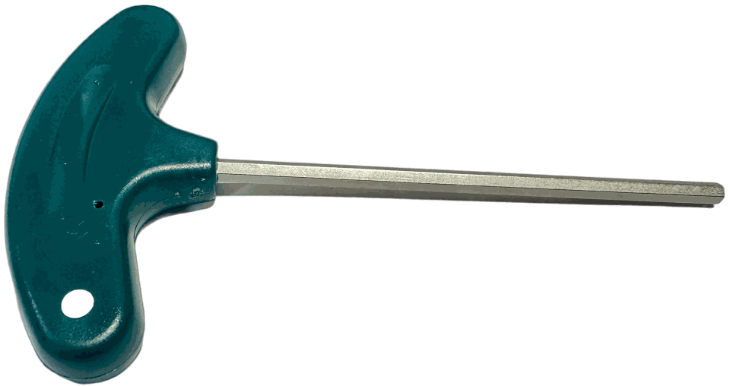

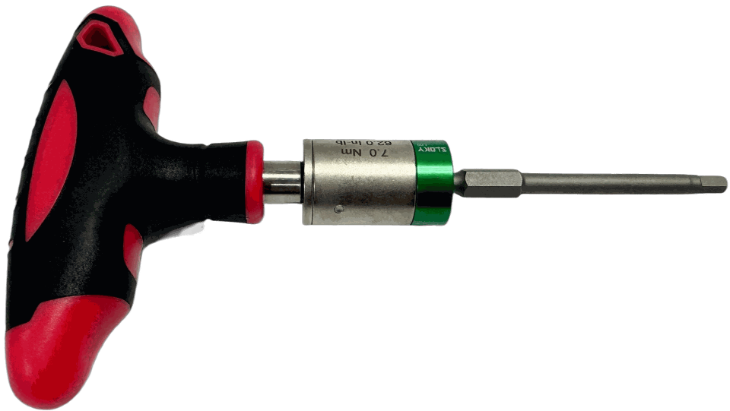

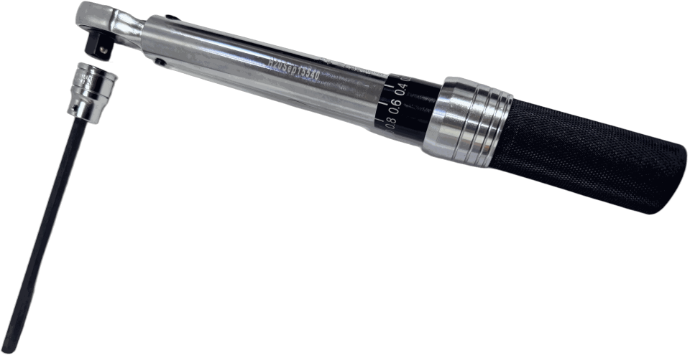

​Wrench
