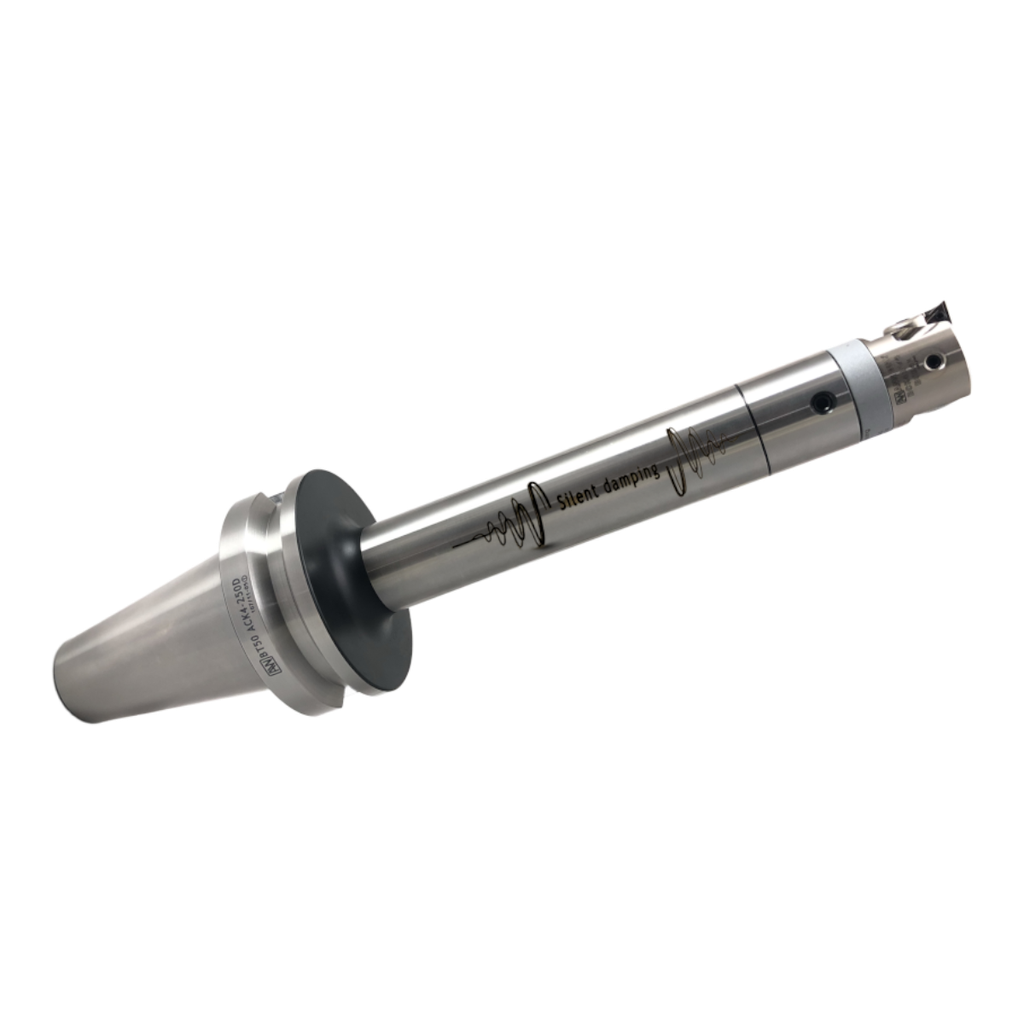

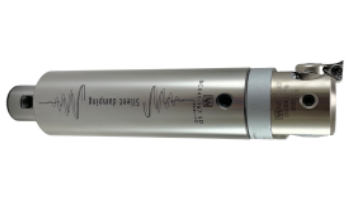

ACK-SD

SILENT DAMPING HOLDER
https://www.annwaytools.com/web/image/product.template/81/image_1920?unique=f820d42

Applications: Used for precision internal machining. It supports both boring and back-boring operations, ideal for high-performance deep boring tasks, and high-accuracy hole finishing.

Features

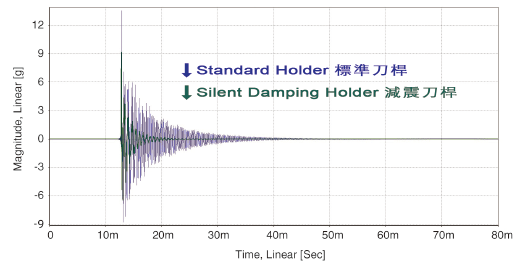

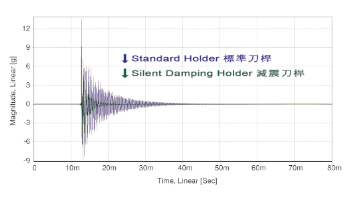

  • ACK-SD Silent Damping Holder features an integrated damping mechanism designed to significantly reduce vibration during deep boring operations. It supports coolant-through applications and is suitable for cutting depths up to 6D. The boring head and inserts are ordered separately, and the use of any extension holder is not recommended to maintain optimal damping performance. With improved machining stability and superior finish, the ACD-SD is ideal for high-performance deep boring tasks.

BT-ACK-SD, HIGH RIGIDITY TYPE

ADAPTER

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
VIDEOACK BORING HOLDER-HIGH RIGIDITY TYPEBCK CARBIDE EXTENSION ADAPTERBCK SILENT DAMPING EXTENSION ADAPTERBCK SILENT DAMPING STEPPED ADAPTERSCREW SIDE LOCK SCREW

VIDEO

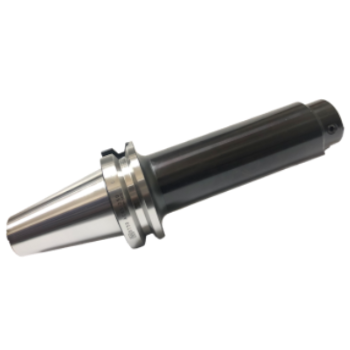

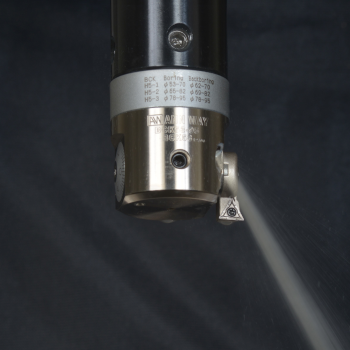

ACK BORING HOLDER-HIGH RIGIDITY TYPE


Features:

  • The ACK High-Rigidity Boring Holder is engineered with a reinforced structure, providing excellent stiffness and stability, making it ideal for deep-hole boring operations. Its coolant-through design enhances chip evacuation and heat dissipation, ensuring consistent machining performance even at extended boring depths.
    Users should verify the D1 diameter with the required boring range to avoid interference and ensure dimensional accuracy.



BCK CARBIDE EXTENSION ADAPTER

Features:

  • Coolant through design.
  • L1 is the reference dimension for boring head installation.

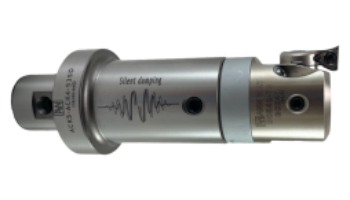

BCK SILENT DAMPING EXTENSION ADAPTER

Features:

  • Coolant through design.
  • Please do NOT combine with Silent Damping holder. Use with standard ACK tool holder ONLY.

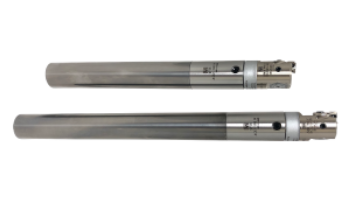

BCK SILENT DAMPING STEPPED ADAPTER

Features:

  • Coolant through design.
  • Please do NOT combine with Silent Damping holder. Use with standard ACK tool holder ONLY.

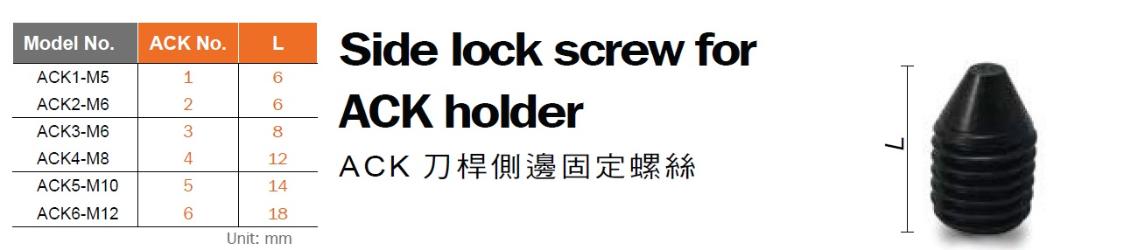

SCREW SIDE LOCK SCREW
