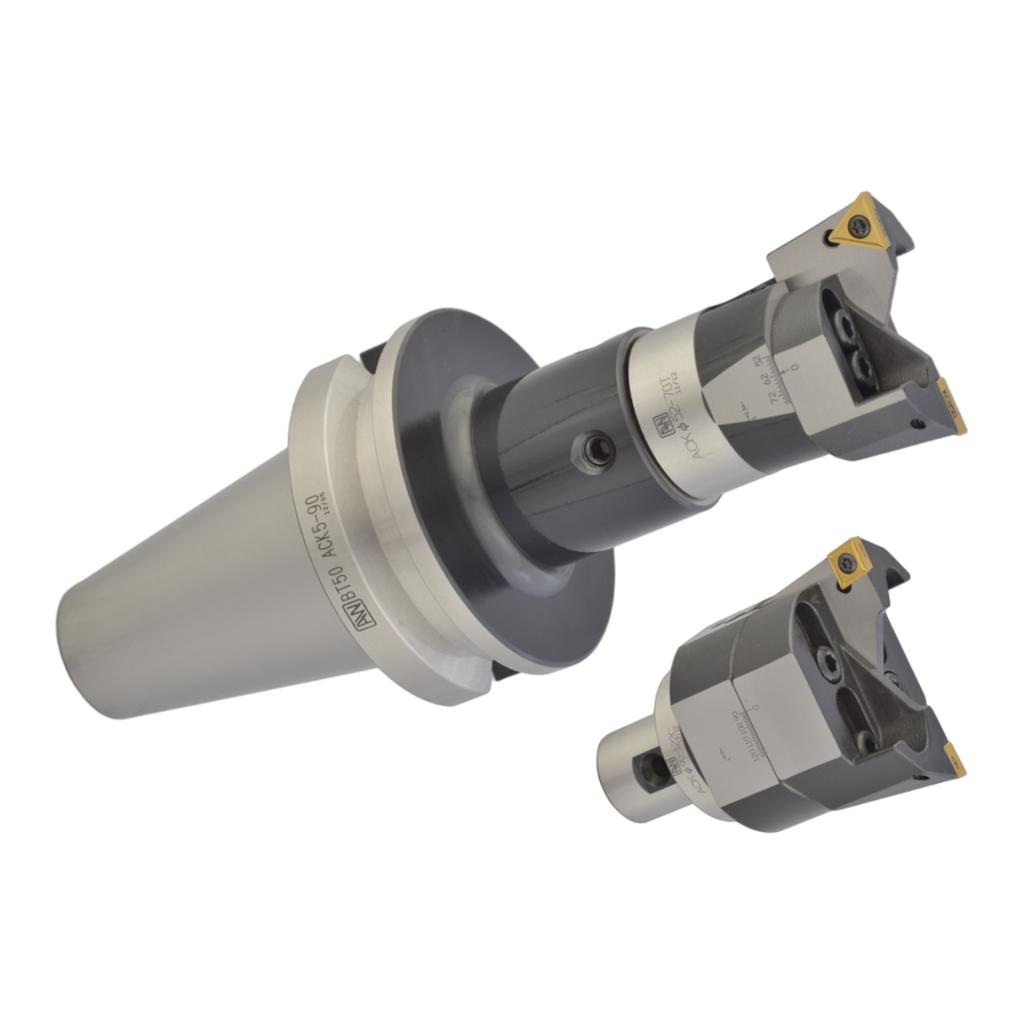

ACK

ADJUSTABLE BALANCE CUTTER
https://www.annwaytools.com/web/image/product.template/87/image_1920?unique=53ab30b

Applications: Used for internal rough boring to ensure dimensional stability, and high accuracy.

Features

  • ACK19~ACK90 are suitable for boring diameter Ø19 ~ Ø122 mm.
  • Adjust the boring size easily by adjust the two screws.
  • ACK boring heads feature a center coolant design and offer two insert types to choose.
    Balanced Cutting: AA Type (both inserts at the same height)–For blind hole machining.
    Stepped Cutting: AB Type (inserts at different heights)–For through hole machining.
  • Please confirm the insert type (AA or AB) when ordering. Example: ACK68 (AA-C).



ACK BORING HEAD

BT

NT

HSK-A

SK (DIN69871A)

CAT

ADAPTER

ACCESSORIES

  • Type
  • Required Model

This combination does not exist.

Required Model: Please enter the model number
VIDEOACK BORING HOLDERACK STEPPED ADAPTER +ACK BORING HEADACK EXTENSION ADAPTER + ACK BORING HEADACK STRAIGHT SHANK ADAPTER + ACK BORING HEADPARTS insert and side lock screw for ACKWRENCH TORQUE WRENCH

VIDEO





ACK BORING HOLDER


Features:

  • ACK tool holders are offered in BT, NT, HSK, DIN, and CAT specifications.
  • ACK19 ~ ACK90 boring range: Ø19 ~Ø122mm.
  • ACK tool holder with through coolant type.
  • The boring head and insert must be ordered separately.

ACK STEPPED ADAPTER +ACK BORING HEAD

Features:

  • Coolant through design.
  • L2 is the effective boring depth & L3 is the reference dimension for boring head installation.



ACK EXTENSION ADAPTER + ACK BORING HEAD

Features:

  • Coolant through design.
  • Tool vibration will be occur when the L/D1 ratio increase.



ACK STRAIGHT SHANK ADAPTER + ACK BORING HEAD

Features:

  • Coolant through design.
  • Tool vibration will be occur when the L/D1 ratio increase.



PARTS insert and side lock screw for ACK




WRENCH TORQUE WRENCH
