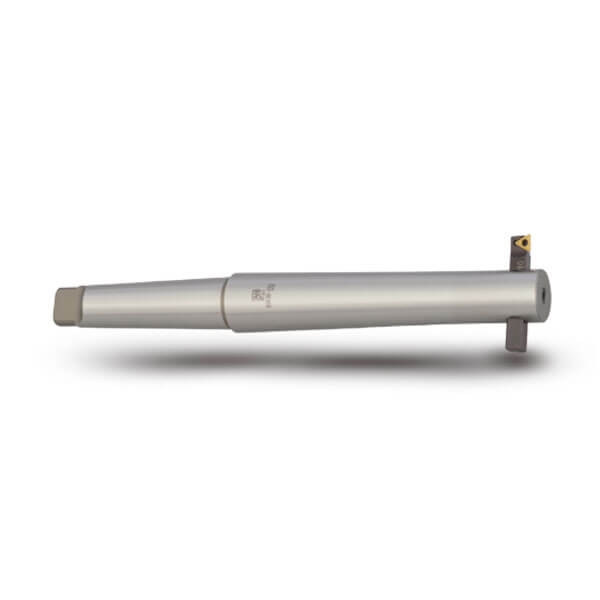

BSB 粗搪刀桿
BT / NT 系列
內徑搪孔
- 捨棄式搪刀架為另購品，內徑搪孔角度需為 90°.
- 請於訂購捨棄式搪刀架時，確認 W □尺寸
| 型號 | 搪孔範圍 | D | D1 | L | W □ | G | |
|---|---|---|---|---|---|---|---|
| Min. | Max. | ||||||
| MTA3 BSB016-100 | 16 | 20 | 14 | 16 | 100 | 6 | M06 |
| MTA3 BSB020-120 | 20 | 25 | 16 | 19 | 120 | 6 | M06 |
| MTA3 BSB025-135 | 25 | 38 | 20 | 24 | 135 | 8 | M06 |
| MTA3 BSB030-165 | 30 | 42 | 24 | 28 | 165 | 8 | M06 |
| MTA3 BSB038-180 | 38 | 52 | 30 | 36 | 180 | 10 | M08 |
| MTA3 BSB042-210 | 42 | 56 | 34 | 38 | 210 | 10 | M08 |
| MTA3 BSB050-180 | 50 | 65 | 40 | 48 | 180 | 13 | M10 |
| MTA4 BSB016-100 | 16 | 20 | 14 | 16 | 100 | 6 | M06 |
| MTA4 BSB020-120 | 20 | 25 | 16 | 19 | 120 | 6 | M06 |
| MTA4 BSB025-135 | 25 | 38 | 20 | 24 | 135 | 8 | M06 |
| MTA4 BSB030-165 | 30 | 42 | 24 | 28 | 165 | 8 | M06 |
| MTA4 BSB038-180 | 38 | 52 | 30 | 36 | 180 | 10 | M08 |
| MTA4 BSB042-210 | 42 | 56 | 34 | 38 | 210 | 10 | M08 |
| MTA4 BSB050-180 | 50 | 65 | 40 | 48 | 180 | 13 | M10 |
| MTA5 BSB016-100 | 16 | 20 | 14 | 16 | 100 | 6 | M06 |
| MTA5 BSB020-120 | 20 | 25 | 16 | 19 | 120 | 6 | M06 |
| MTA5 BSB025-135 | 25 | 38 | 20 | 24 | 135 | 8 | M06 |
| MTA5 BSB030-165 | 30 | 42 | 24 | 28 | 165 | 8 | M06 |
| MTA5 BSB038-180 | 38 | 52 | 30 | 36 | 180 | 10 | M08 |
| MTA5 BSB042-210 | 42 | 56 | 34 | 38 | 210 | 10 | M08 |
| MTA5 BSB050-180 | 50 | 65 | 40 | 48 | 180 | 13 | M10 |
| MTA5 BSB050-240 | 50 | 65 | 40 | 48 | 240 | 13 | M10 |
| MTA5 BSB062-195 | 62 | 90 | 50 | 58 | 195 | 16 | M10 |
| MTA5 BSB062-270 | 62 | 90 | 50 | 58 | 270 | 16 | M10 |
| MTA5 BSB072-195 | 72 | 110 | 60 | 68 | 195 | 19 | M12 |
| MTA5 BSB072-285 | 72 | 110 | 60 | 68 | 285 | 19 | M12 |
| MTA5 BSB090-210 | 90 | 125 | 75 | 75 | 210 | 19 | M12 |
| MTA5 BSB090-300 | 90 | 125 | 75 | 75 | 300 | 19 | M12 |
| MTA5 BSB105-195 | 105 | 160 | 95 | 95 | 195 | 25 | M16 |
| MTA5 BSB105-285 | 105 | 160 | 95 | 95 | 285 | 25 | M16 |
| MTA6 BSB016-100 | 16 | 20 | 14 | 16 | 100 | 6 | M06 |
| MTA6 BSB020-120 | 20 | 25 | 16 | 19 | 120 | 6 | M06 |
| MTA6 BSB025-135 | 25 | 38 | 20 | 24 | 135 | 8 | M06 |
| MTA6 BSB030-165 | 30 | 42 | 24 | 28 | 165 | 8 | M06 |
| MTA6 BSB038-180 | 38 | 52 | 30 | 36 | 180 | 10 | M08 |
| MTA6 BSB042-210 | 42 | 56 | 34 | 38 | 210 | 10 | M08 |
| MTA6 BSB050-180 | 50 | 65 | 40 | 48 | 180 | 13 | M10 |
| MTA6 BSB050-240 | 50 | 65 | 40 | 48 | 240 | 13 | M10 |
| MTA6 BSB062-195 | 62 | 90 | 50 | 58 | 195 | 16 | M10 |
| MTA6 BSB062-270 | 62 | 90 | 50 | 58 | 270 | 16 | M10 |
| MTA6 BSB072-195 | 72 | 110 | 60 | 68 | 195 | 19 | M12 |
| MTA6 BSB072-285 | 72 | 110 | 60 | 68 | 285 | 19 | M12 |
| MTA6 BSB090-210 | 90 | 125 | 75 | 75 | 210 | 19 | M12 |
| MTA6 BSB090-300 | 90 | 125 | 75 | 75 | 300 | 19 | M12 |
| MTA6 BSB105-195 | 105 | 160 | 95 | 95 | 195 | 25 | M16 |
| MTA6 BSB105-285 | 105 | 160 | 95 | 95 | 285 | 25 | M16 |
Unit: mm
